SKU: BK2212-MB

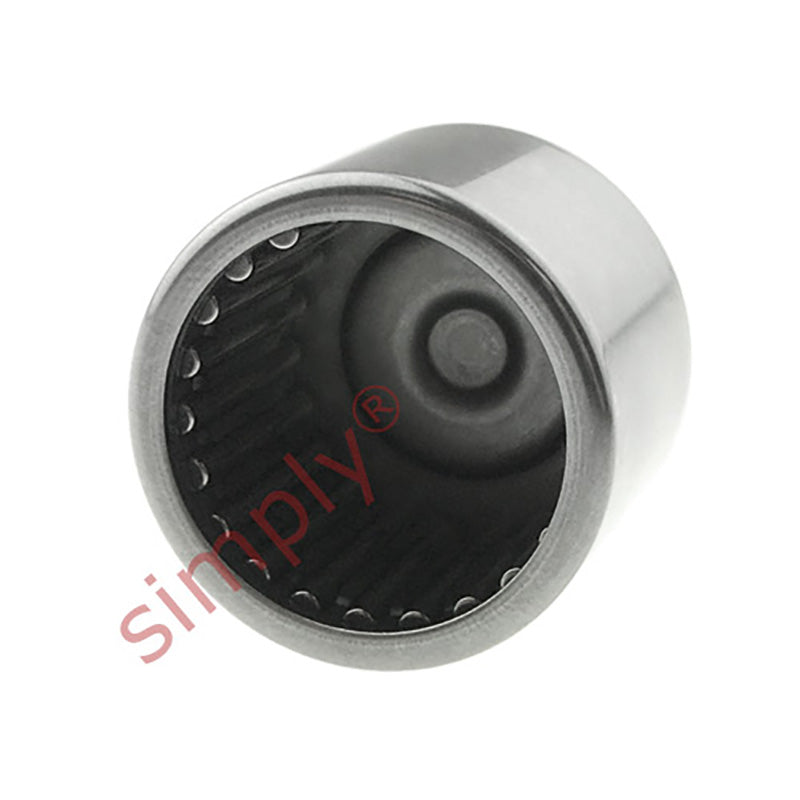

Major Brand BK2212 Drawn Cup Type Needle Roller Bearing with One Closed End 22x28x12mm
- Regular price
- $30.59 ex VAT
- Sale price
- $30.59
- Regular price
-
In stock
Quantity Price Breaks
10
$27.23
19
$25.70
29
$25.39
39
$25.08
49
$24.78
74
$24.47
99
$22.94
199
$22.64
249
$22.33
499
$22.02
999
$21.41
SKU:
BK2212-MB
Major Brand BK2212 Drawn Cup Type Needle Roller Bearing with One Closed End 22x28x12mm
- Regular price
- $30.59 ex VAT
- Sale price
- $30.59
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 22mm |
| D | = | 28mm |
| C | = | 12mm |
| Dynamic load | = | 8800 N |
| Static load | = | 13700 N |
| Fatigue load limit Pu | = | 1560 N |
| Speed in grease | = | 8000 rpm |
| Speed in oil | = | 12000 rpm |
| C1 | = | 9.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 23mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR17x22x13 |
| Seal | = | G/SD22x28x4 |
| Weight | = | 18 g |
