SKU: BK0609-MB

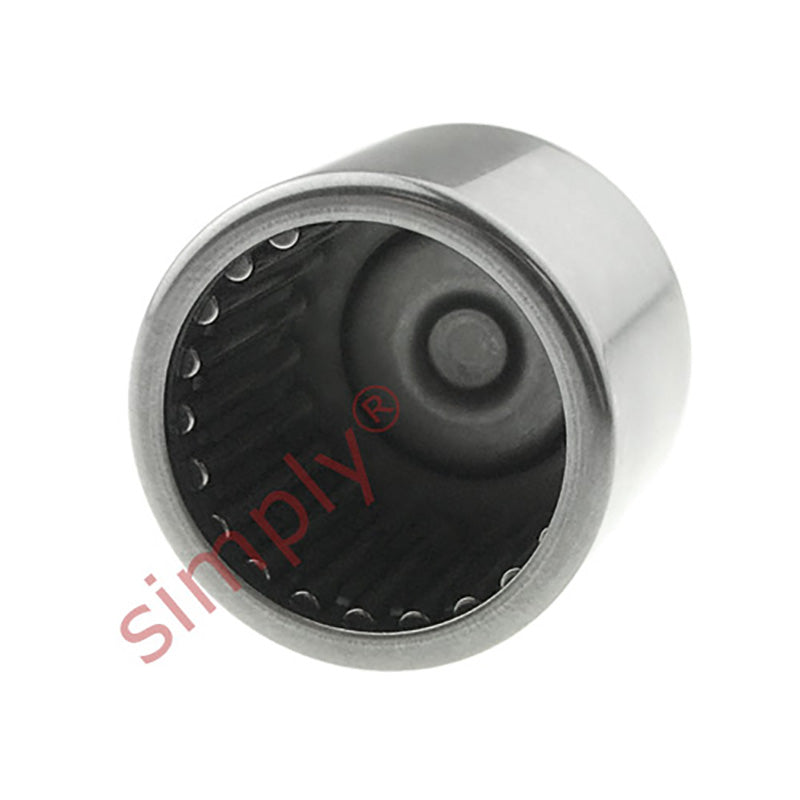

Major Brand BK0609 Drawn Cup Type Needle Roller Bearing with One Closed End 6x10x9mm
- Regular price
- $9.96 ex VAT
- Sale price
- $9.96
- Regular price
-
In stock
Quantity Price Breaks
10
$8.86
19
$8.37
29
$8.27
39
$8.17
49
$8.07
74
$7.97
99
$7.47
199
$7.37
249
$7.27
499
$7.17
999
$6.97
SKU:
BK0609-MB
Major Brand BK0609 Drawn Cup Type Needle Roller Bearing with One Closed End 6x10x9mm
- Regular price
- $9.96 ex VAT
- Sale price
- $9.96
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 6mm |
| D | = | 10mm |
| C | = | 9mm |
| Dynamic load | = | 2810 N |
| Static load | = | 2700 N |
| Fatigue load limit Pu | = | 285 N |
| Speed in grease | = | 20000 rpm |
| Speed in oil | = | 32000 rpm |
| C1 | = | 7.4mm |
| r1r2 min | = | 0.4mm |
| Da max | = | 6.3mm |
| ra max | = | 0.4mm |
| Seal | = | G6x10x2S |
| Weight | = | 2.6 g |
