SKU: BB-625-B180-10-ES

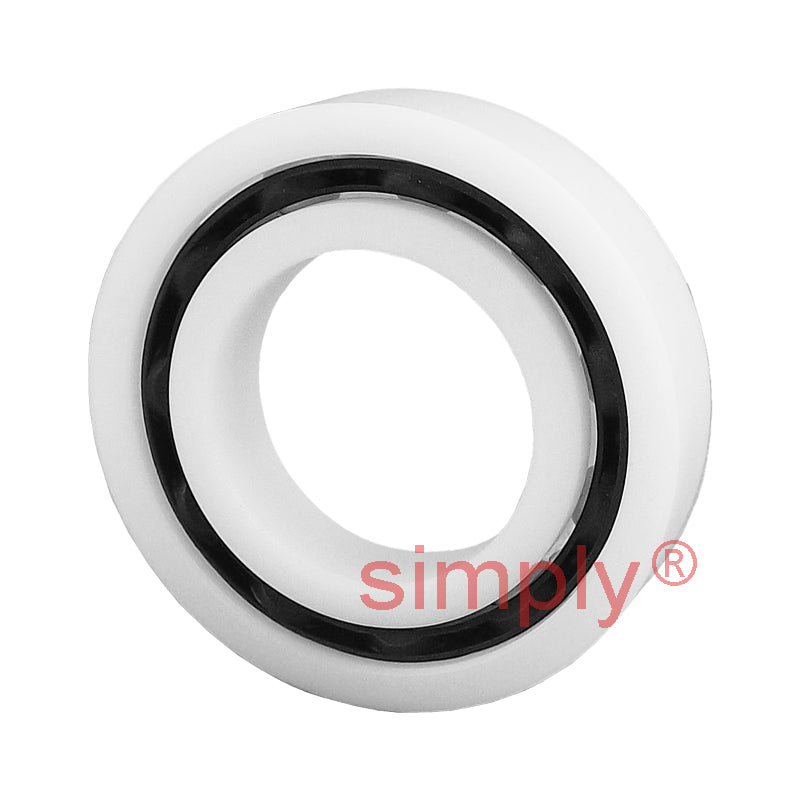

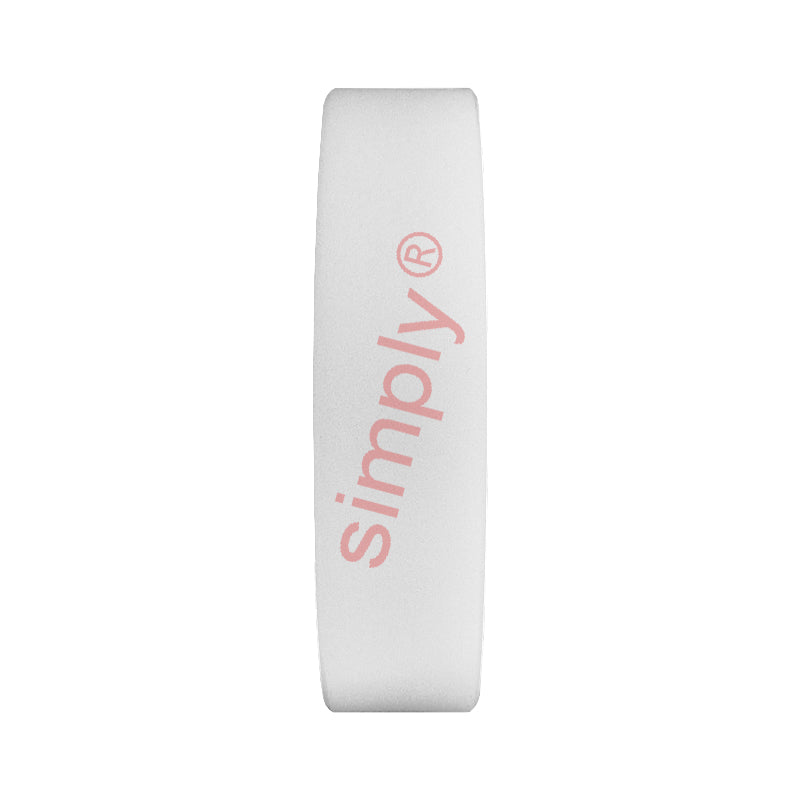

xiros xirodur BB625B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 5x16x5mm
- Regular price
- $13.35 ex VAT
- Sale price
- $13.35
- Regular price
-
In stock
Quantity Price Breaks
5
$11.88
9
$11.21
29
$11.08
49
$10.95
99
$10.81
199
$10.68
299
$10.01
399
$9.88
499
$9.75
749
$9.61
999
$9.35
SKU:
BB-625-B180-10-ES
xiros xirodur BB625B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 5x16x5mm
- Regular price
- $13.35 ex VAT
- Sale price
- $13.35
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical

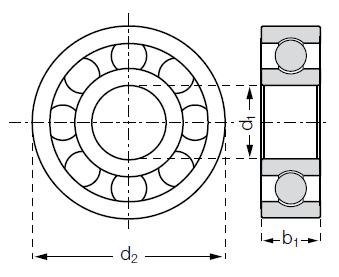

| d1 | = | 5mm |
| d2 | = | 16mm |
| b1 | = | 5mm |
| Max static load capacity | = | 75 N |
| Static load capacity | = | 40 N |
| Dynamic load capacity | = | 58 N |
| Max speed | = | 3100 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
