SKU: BB-623-B180-10-ES

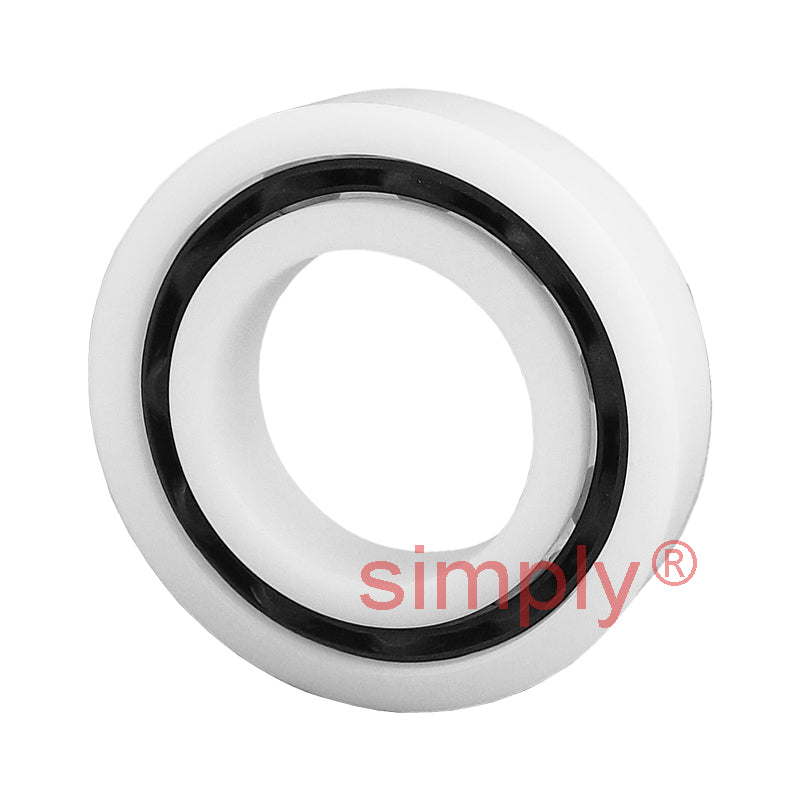

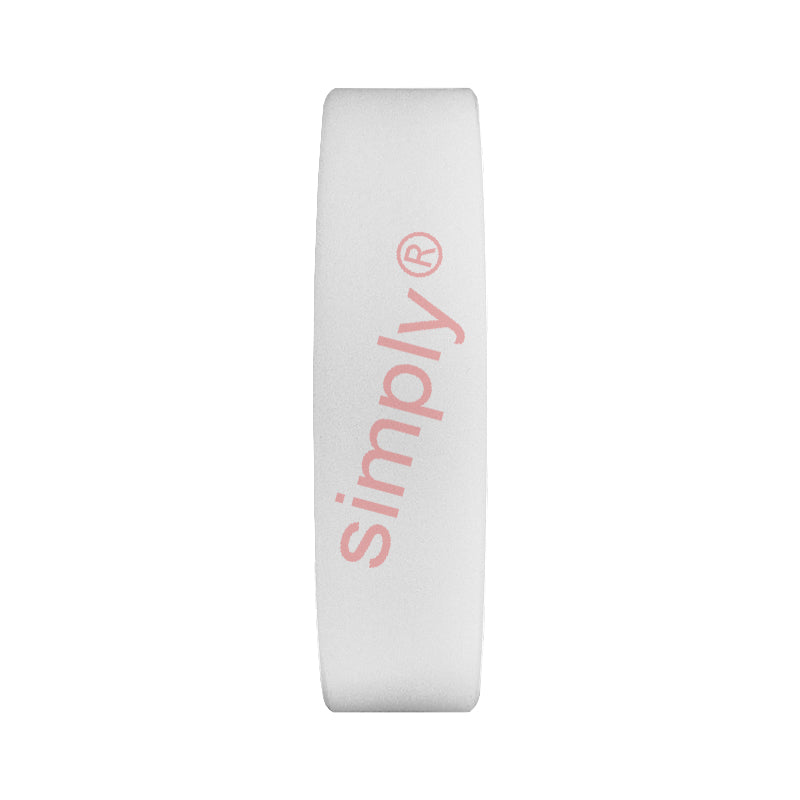

xiros xirodur BB623B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 3x10x4mm
- Regular price
- $12.83 ex VAT
- Sale price
- $12.83
- Regular price
-
In stock
Quantity Price Breaks
5
$11.42
9
$10.78
29
$10.65
49
$10.52
99
$10.39
199
$10.26
299
$9.62
399
$9.49
499
$9.37
749
$9.24
999
$8.98
SKU:
BB-623-B180-10-ES
xiros xirodur BB623B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 3x10x4mm
- Regular price
- $12.83 ex VAT
- Sale price
- $12.83
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 3mm |
| d2 | = | 10mm |
| b1 | = | 4mm |
| Max static load capacity | = | 30 N |
| Static load capacity | = | 25 N |
| Dynamic load capacity | = | 35 N |
| Max speed | = | 4500 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
