SKU: B.76.DELTA
B76 Gates Delta Classic B-Section V-Belt (Uniset Match)
- Regular price
- $30.52 ex VAT
- Sale price
- $30.52
- Regular price
-
Quantity Price Breaks
B76 Gates Delta Classic B-Section V-Belt (Uniset Match)
- Regular price
- $30.52 ex VAT
- Sale price
- $30.52
- Regular price
-
Description
Gates Delta Classic™ B-Section V-Belt (Uniset Match): The Delta Classic™ V-belts have a classical V-shaped profiles and are built for reliability and durability. For use in all industrial applications which use standard classical B section drives including compressors, pumps, aggregate screens, alternators, saws, milling, processing machines, fans etc...
The belts have anti-static properties to ISO 1813 (electrical resistance and antistatic standard) and are REACH, RoHS 2 and ATEX compliant.
High-strength polyester tensile cords provide resistance to flexing forces, fatigue and shock loads.
The belts are oil and moisture resistant and offer good grip and protection against abrasion.
Suitable for use in operating temperatures of -30 deg C to +70 deg C. All sizes in this range meet the Gates UNISET tolerance standards and can be installed without matching. The belts are manufactured in the EU and conform to the requirements of DIN 2215 / ISO 4184 / RMA IP22 / BS 3790.
Benefits: Good belt flexibility, stability and smooth-running operation, antistatic.
Technical

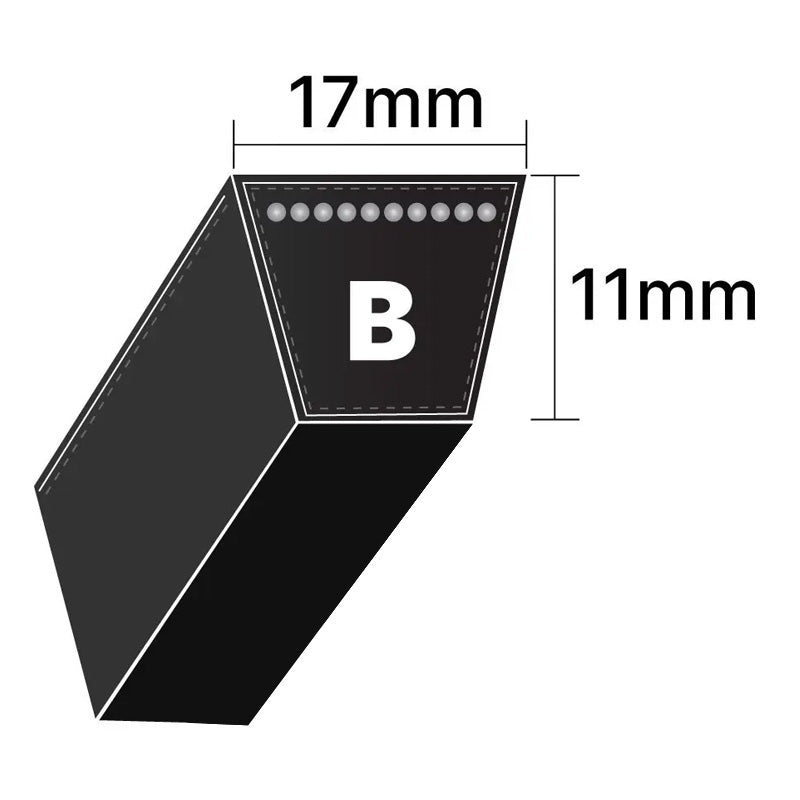

| Belt Width Approx | = | 17mm |
| Belt Depth Approx | = | 11mm |
| Inside Length Approx | = | 76 inch = 1930mm |
| Belt Datum Length Approx | = | 77.69 inch = 1973mm |
| Belt Length Approx | = | 78.75 inch = 2000mm |
