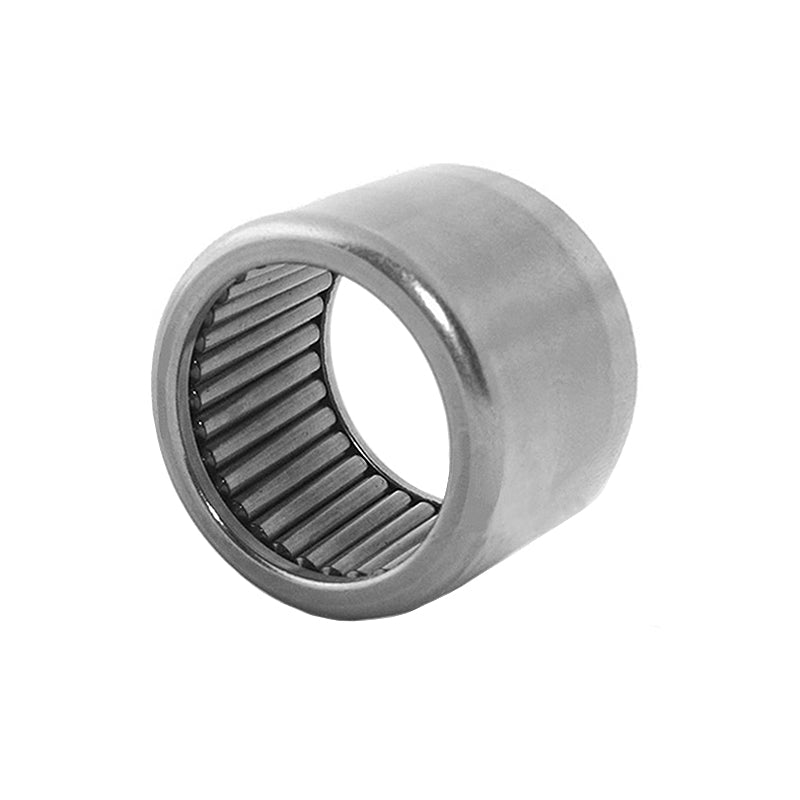

Major Branded B2410 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/2x1-7/8x5/8 inch

SKU: B-2410

Major Branded B2410 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/2x1-7/8x5/8 inch

$35.52 ex VAT
$35.52
ex VAT
In stock

Quantity Price Breaks

5 $31.61
9 $29.84
19 $29.48
29 $29.13
49 $28.77
74 $28.42
99 $26.64
199 $26.28
249 $25.93
499 $25.57
999 $24.86
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded B2410 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/2x1-7/8x5/8 inch
SKU: B-2410

Major Branded B2410 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-1/2x1-7/8x5/8 inch

$35.52 ex VAT
$35.52
ex VAT

Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.

Technical

Inside Diameter = 38.1mm = 1.5 inch
Outside Diameter = 47.63mm = 1.875 inch
Width = 15.88mm = 0.625 inch
Dynamic load C = 29.8 kN
Static load Co = 53.8 kN

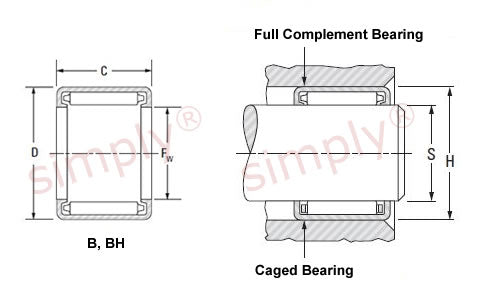

S max = 38.1mm = 1.5 inch
S min = 38.087mm = 1.4995 inch
H max = 47.638mm = 1.8755 inch
H min = 47.612mm = 1.8745 inch
