SKU: AXK75100-MB-AS75100-MB
AXK75100 Major Branded Needle Roller Cage with 2 AS75100 Washers 75x100x6mm
- Regular price
- $56.66 ex VAT
- Sale price
- $56.66
- Regular price
-
Not in stock
Quantity Price Breaks
10
$50.43
19
$47.59
29
$47.03
39
$46.46
49
$45.89
74
$45.33
99
$42.50
199
$41.93
249
$41.36
499
$40.80
999
$39.66
SKU:
AXK75100-MB-AS75100-MB
AXK75100 Major Branded Needle Roller Cage with 2 AS75100 Washers 75x100x6mm
- Regular price
- $56.66 ex VAT
- Sale price
- $56.66
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |

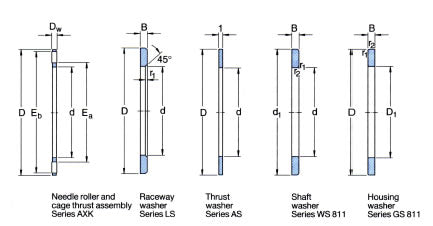

Technical
| d | = | 75mm |
| D | = | 100mm |
| Dw | = | 6mm total (2 washers at 1mm each) |
| Ea | = | 79mm |
| Eb | = | 98mm |
| Dynamic load | = | 50000 N |
| Static load | = | 265000 N |
| Fatigue load limit Pu | = | 32000 N |
| Speed in grease | = | 1100 rpm |
| Speed in oil | = | 1600 rpm |
| Weight (assembly) | = | 61 g |
| d1 | = | 100mm |
| D | = | 100mm |
| D1 | = | 77mm |
| B | = | 5.75mm |
