SKU: AXK1629-MB-AS1629-MB

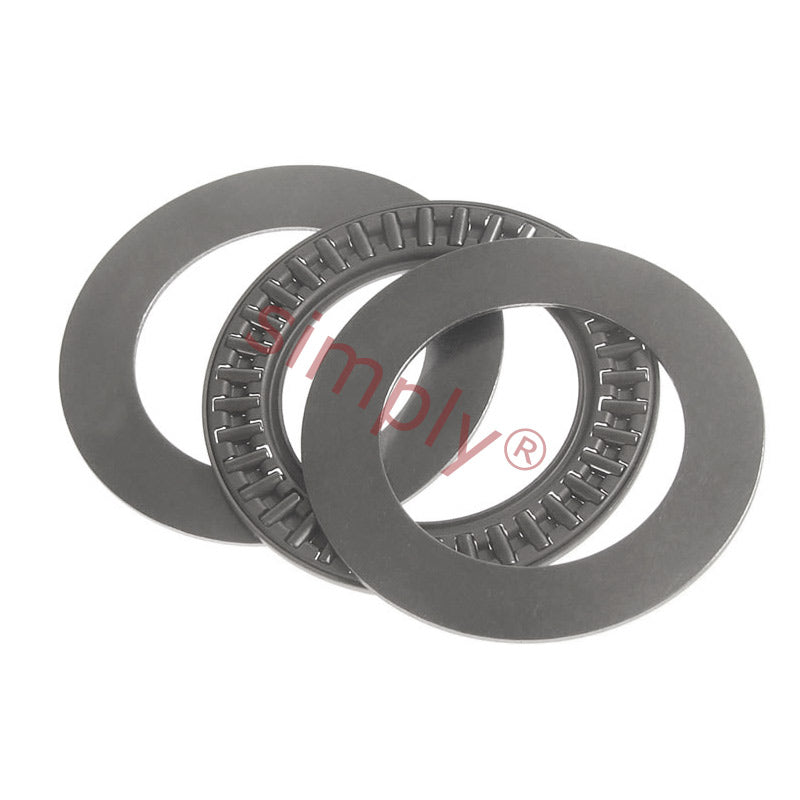

AXK1629 Major Branded Needle Roller Cage with 2 AS1629 Washers 16x29x4mm
- Regular price
- $8.33 ex VAT
- Sale price
- $8.33
- Regular price
-
In stock
Quantity Price Breaks
10+
$7.41
19+
$7.00
29+
$6.91
39+
$6.83
49+
$6.75
74+
$6.66
99+
$6.25
199+
$6.16
249+
$6.08
499+
$6.00
999+
$5.83
SKU:
AXK1629-MB-AS1629-MB
AXK1629 Major Branded Needle Roller Cage with 2 AS1629 Washers 16x29x4mm
- Regular price
- $8.33 ex VAT
- Sale price
- $8.33
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 16mm |
| D | = | 29mm |
| Dw | = | 4mm total (2 washers at 1mm each) |
| Dynamic load | = | 9070 N |
| Static load | = | 31400N |
| Raceway Washer | = | LS1629 |
| Thrust Washer | = | AS1629 |
