SKU: AS140180-EU

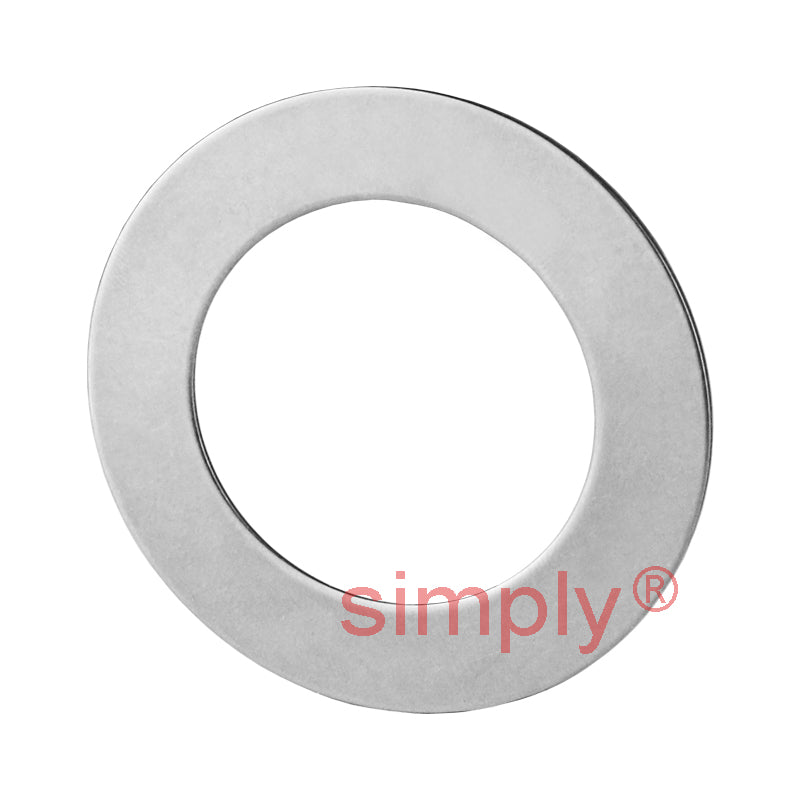

AS140180 Budget Thrust Washer Series AS 140x180x1mm
- Regular price
- $41.68 ex VAT
- Sale price
- $41.68
- Regular price
-
Not in stock
Quantity Price Breaks
10
$37.10
19
$35.01
29
$34.59
39
$34.18
49
$33.76
74
$33.34
99
$31.26
199
$30.84
249
$30.43
499
$30.01
999
$29.18
SKU:
AS140180-EU
AS140180 Budget Thrust Washer Series AS 140x180x1mm
- Regular price
- $41.68 ex VAT
- Sale price
- $41.68
- Regular price
-
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 140mm |
| d1 | = | 178mm |
| D | = | 180mm |
| D1 | = | 142mm |
| B | = | 1mm |
| r1r2 | = | 1mm |
| Material | = | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | = | 750 g |
