SKU: AOH3056-MB

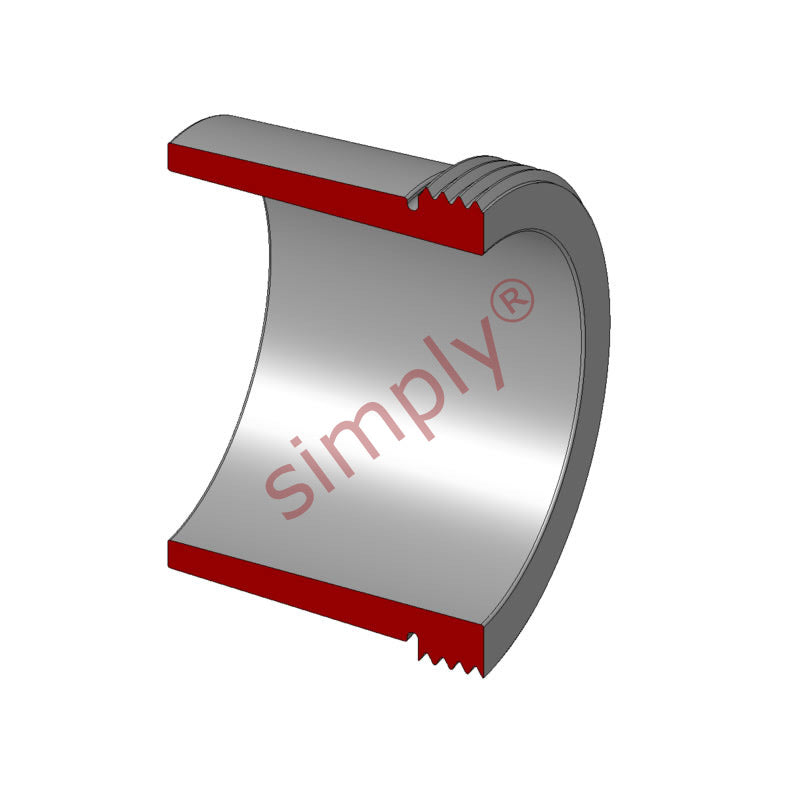

Major Branded AOH3056 Withdrawal Sleeve for 260mm shaft
- Regular price
- $1,604.05 ex VAT
- Sale price
- $1,604.05
- Regular price
-
Not in stock
Quantity Price Breaks
10
$1,427.60
19
$1,347.40
29
$1,331.36
39
$1,315.32
49
$1,299.28
74
$1,283.24
99
$1,203.04
199
$1,187.00
249
$1,170.96
499
$1,154.92
999
$1,122.84
SKU:
AOH3056-MB
Major Branded AOH3056 Withdrawal Sleeve for 260mm shaft
- Regular price
- $1,604.05 ex VAT
- Sale price
- $1,604.05
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 260mm |
| d | = | 280mm |
| B1 | = | 131mm |
| B2 | = | 139mm |
| G | = | Thread 300x4mm |
| G1 | = | 24 |
| G2 | = | Gl/4 |
| A | = | 9mm |
| Weight | = | 11 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AOH3056 |
| Nut | = | HM3060 |
| Hydraulic nut | = | HMV60E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23056K+taper> | = | 23056K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3056K+taper> | = | C3056K< |
| /a> | = |
