SKU: AOH24044-MB

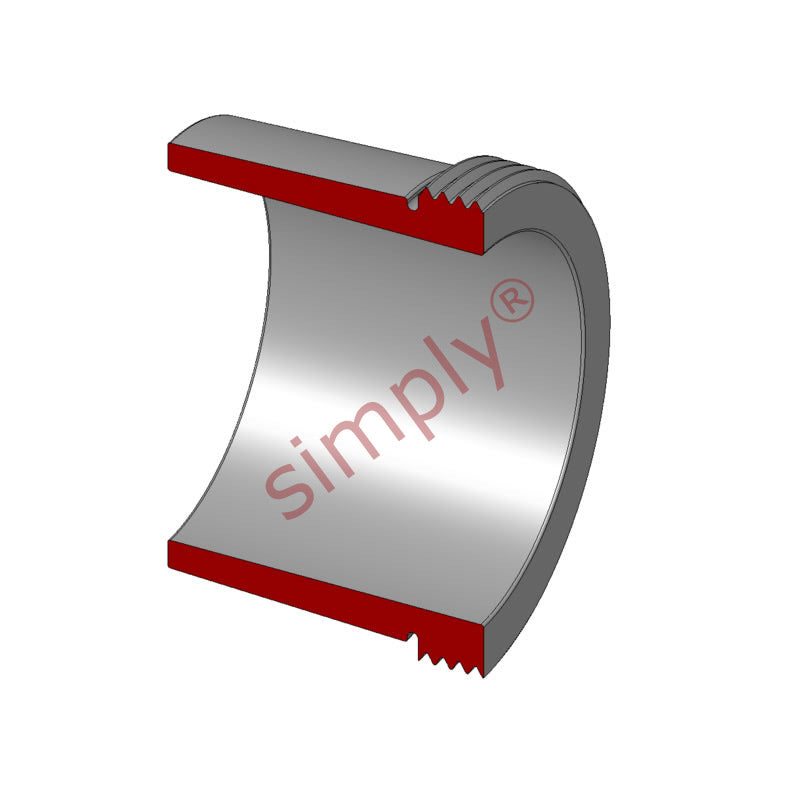

Major Branded AOH24044 Withdrawal Sleeve for 200mm shaft
- Regular price
- $1,534.75 ex VAT
- Sale price
- $1,534.75
- Regular price
-
Not in stock
Quantity Price Breaks
10
$1,365.93
19
$1,289.19
29
$1,273.84
39
$1,258.50
49
$1,243.15
74
$1,227.80
99
$1,151.06
199
$1,135.72
249
$1,120.37
499
$1,105.02
999
$1,074.33
SKU:
AOH24044-MB
Major Branded AOH24044 Withdrawal Sleeve for 200mm shaft
- Regular price
- $1,534.75 ex VAT
- Sale price
- $1,534.75
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 200mm |
| d | = | 220mm |
| B1 | = | 138mm |
| B2 | = | 152mm |
| G | = | Thread 230x4mm |
| G1 | = | 20 |
| G2 | = | Gl/8 |
| A | = | 6.5mm |
| Weight | = | 7.45 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AOH24044 |
| Nut | = | HM46T |
| Hydraulic nut | = | HMV46E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24044K+taper> | = | 24044K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4044K30V+taper> | = | C4044K30V< |
| /a> | = |
