SKU: AOH2348-MB

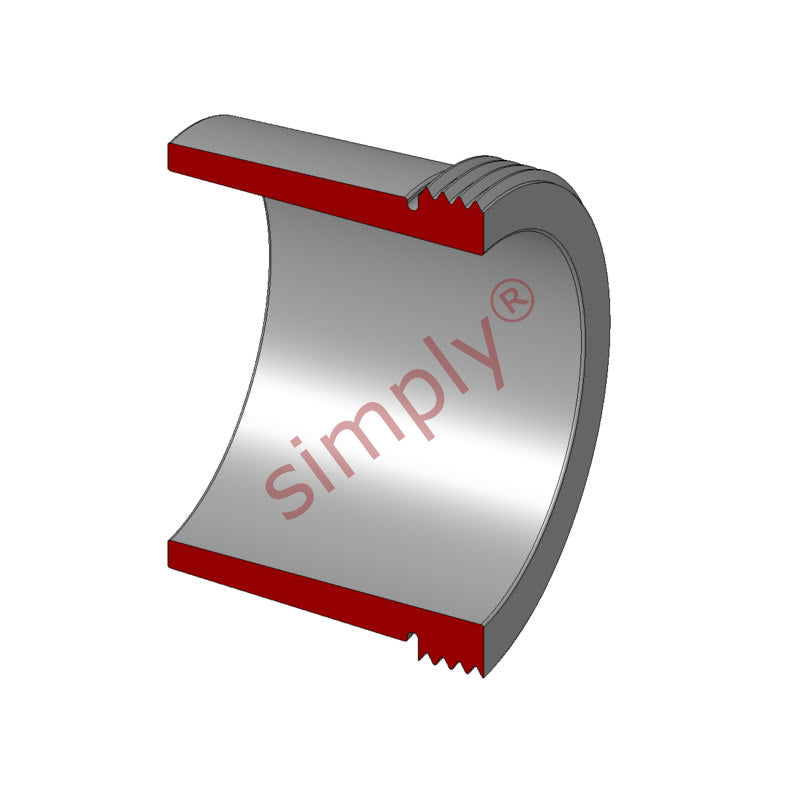

Major Branded AOH2348 Withdrawal Sleeve for 220mm shaft
- Regular price
- $1,836.43 ex VAT
- Sale price
- $1,836.43
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
$1,634.42
19
$1,542.60
29
$1,524.24
39
$1,505.87
49
$1,487.51
74
$1,469.14
99
$1,377.32
199
$1,358.96
249
$1,340.59
499
$1,322.23
999
$1,285.50
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 220mm |
| d | = | 240mm |
| B1 | = | 189mm |
| B2 | = | 197mm |
| G | = | Thread 260x4mm |
| G1 | = | 30 |
| G2 | = | Gl/4 |
| A | = | 9mm |
| Weight | = | 14 kg |

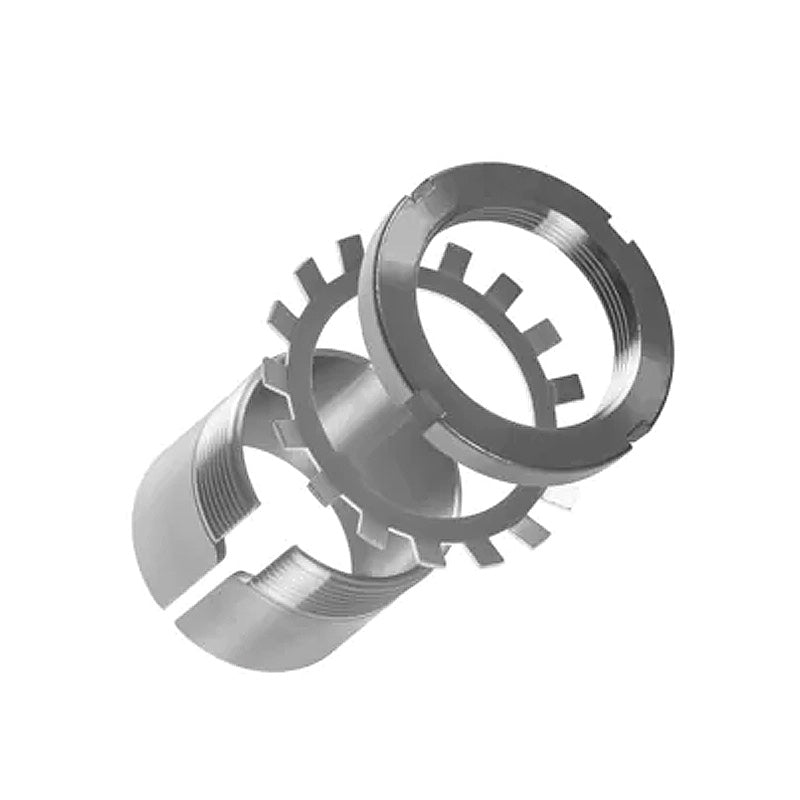

| --- | = | Assembly Parts |
| Sleeve | = | AOH2348 |
| Nut | = | HM3052 |
| Hydraulic nut | = | HMV52E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23248K+taper> | = | 23248K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22348K+taper> | = | 22348K< |
| /a> | = |
