SKU: AHX3126-MB

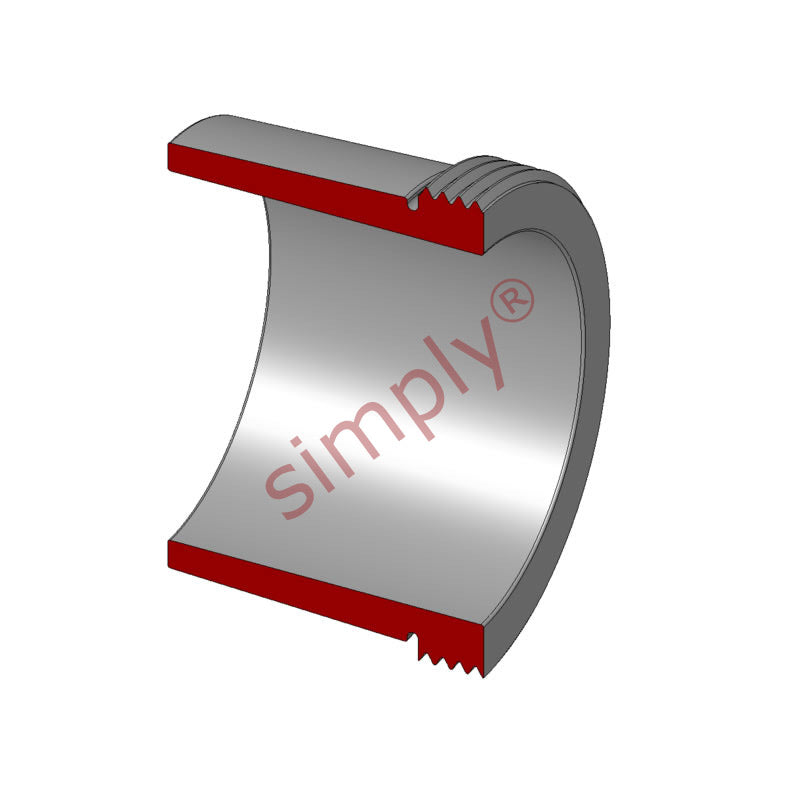

Major Branded AHX3126 Withdrawal Sleeve for 125mm shaft
- Regular price
- $367.05 ex VAT
- Sale price
- $367.05
- Regular price
-
Not in stock
Quantity Price Breaks
10
$326.67
19
$308.32
29
$304.65
39
$300.98
49
$297.31
74
$293.64
99
$275.29
199
$271.62
249
$267.95
499
$264.28
999
$256.94
SKU:
AHX3126-MB
Major Branded AHX3126 Withdrawal Sleeve for 125mm shaft
- Regular price
- $367.05 ex VAT
- Sale price
- $367.05
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 125mm |
| d | = | 130mm |
| B1 | = | 78mm |
| B2 | = | 82mm |
| G | = | Thread 140x2mm |
| G1 | = | 12mm |
| Weight | = | 1.1 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AHX3126 |
| Nut | = | KM28 |
| Hydraulic nut | = | HMV28E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23126K+taper> | = | 23126K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22226K+taper> | = | 22226K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2226K+taper> | = | C2226K< |
| /a> | = |
