SKU: AHX2322G-MB
Major Branded AHX2322G Withdrawal Sleeve for 105mm shaft
- Regular price
- $236.99 ex VAT
- Sale price
- $236.99
- Regular price
-
Not in stock
Quantity Price Breaks
10
$210.92
19
$199.07
29
$196.70
39
$194.33
49
$191.96
74
$189.59
99
$177.74
199
$175.37
249
$173.00
499
$170.63
999
$165.89
SKU:
AHX2322G-MB
Major Branded AHX2322G Withdrawal Sleeve for 105mm shaft
- Regular price
- $236.99 ex VAT
- Sale price
- $236.99
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 105mm |
| d | = | 110mm |
| B1 | = | 98mm |
| B2 | = | 102mm |
| G | = | Thread 120x2mm |
| G1 | = | 16mm |
| Weight | = | 1.3 kg |

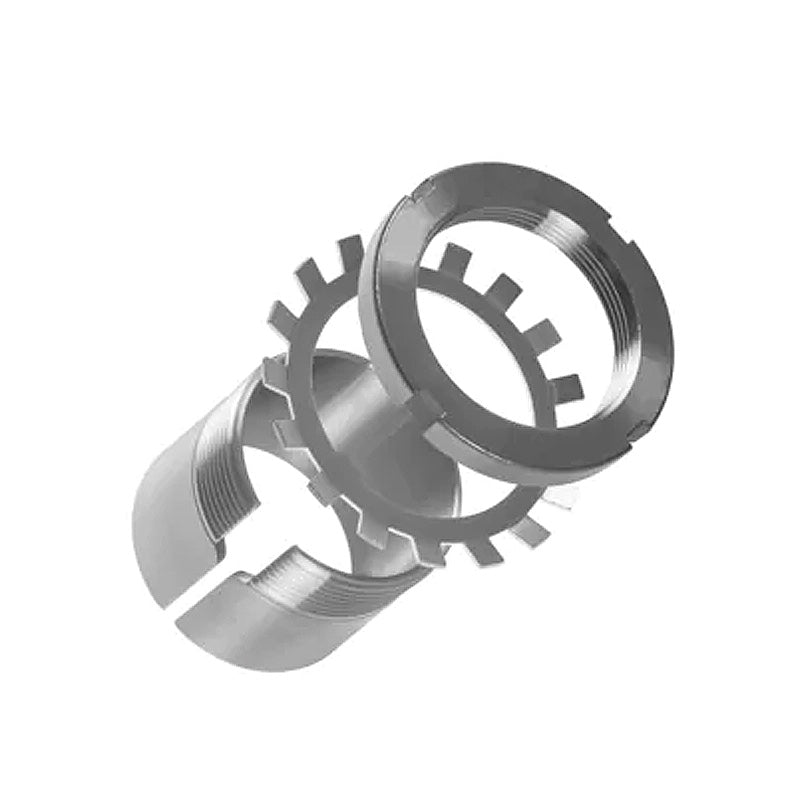

| --- | = | Assembly Parts |
| Sleeve | = | AHX2322G |
| Nut | = | KM24 |
| Hydraulic nut | = | HMV24E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2322K+taper> | = | 2322K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22322K+taper> | = | 22322K< |
| /a> | = |
