SKU: AH316-MB
Major Branded AH316 Withdrawal Sleeve for 75mm shaft
- Regular price
- $145.79 ex VAT
- Sale price
- $145.79
- Regular price
-
Not in stock
Quantity Price Breaks
10
$129.75
19
$122.46
29
$121.01
39
$119.55
49
$118.09
74
$116.63
99
$109.34
199
$107.88
249
$106.43
499
$104.97
999
$102.05
SKU:
AH316-MB
Major Branded AH316 Withdrawal Sleeve for 75mm shaft
- Regular price
- $145.79 ex VAT
- Sale price
- $145.79
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 75mm |
| d | = | 80mm |
| B1 | = | 48mm |
| B2 | = | 52mm |
| G | = | Thread 90x2mm |
| G1 | = | 8mm |
| Weight | = | 0.37 kg |

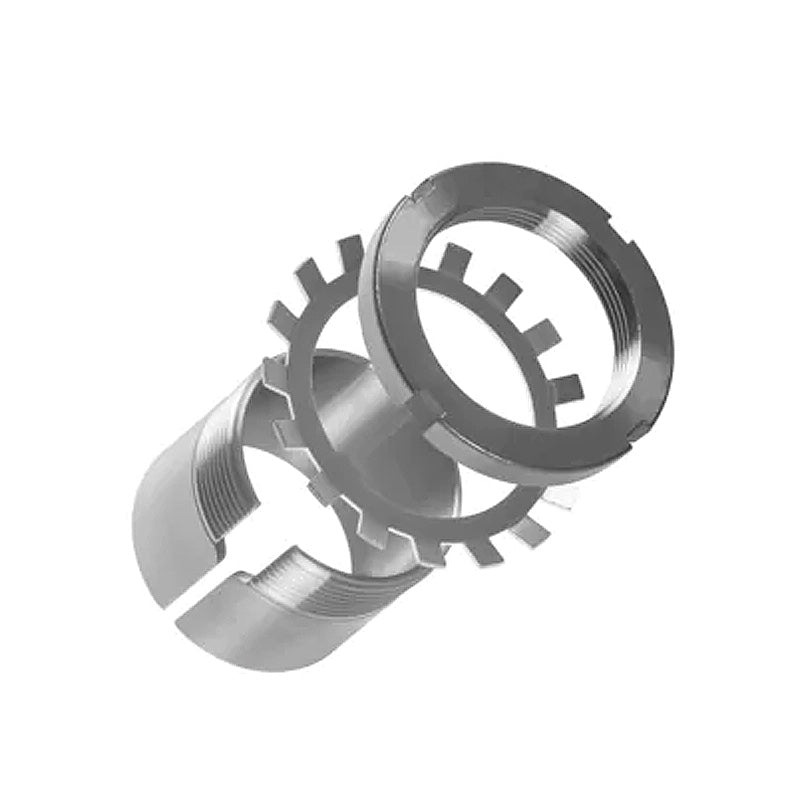

| --- | = | Assembly Parts |
| Sleeve | = | AH316 |
| Nut | = | KM18 |
| Hydraulic nut | = | HMV18E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2216K+taper> | = | 2216K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1316K+taper> | = | 1316K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22216K+taper> | = | 22216K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=21316K+taper> | = | 21316K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2216K+taper> | = | C2216K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2216KV+taper> | = | C2216KV< |
| /a> | = |
