SKU: AH3136G-MB
Major Branded AH3136G Withdrawal Sleeve for 170mm shaft
- Regular price
- $923.83 ex VAT
- Sale price
- $923.83
- Regular price
-
Not in stock
Quantity Price Breaks
10
$822.21
19
$776.02
29
$766.78
39
$757.54
49
$748.30
74
$739.06
99
$692.87
199
$683.63
249
$674.40
499
$665.16
999
$646.68
SKU:
AH3136G-MB
Major Branded AH3136G Withdrawal Sleeve for 170mm shaft
- Regular price
- $923.83 ex VAT
- Sale price
- $923.83
- Regular price
-
Description
|

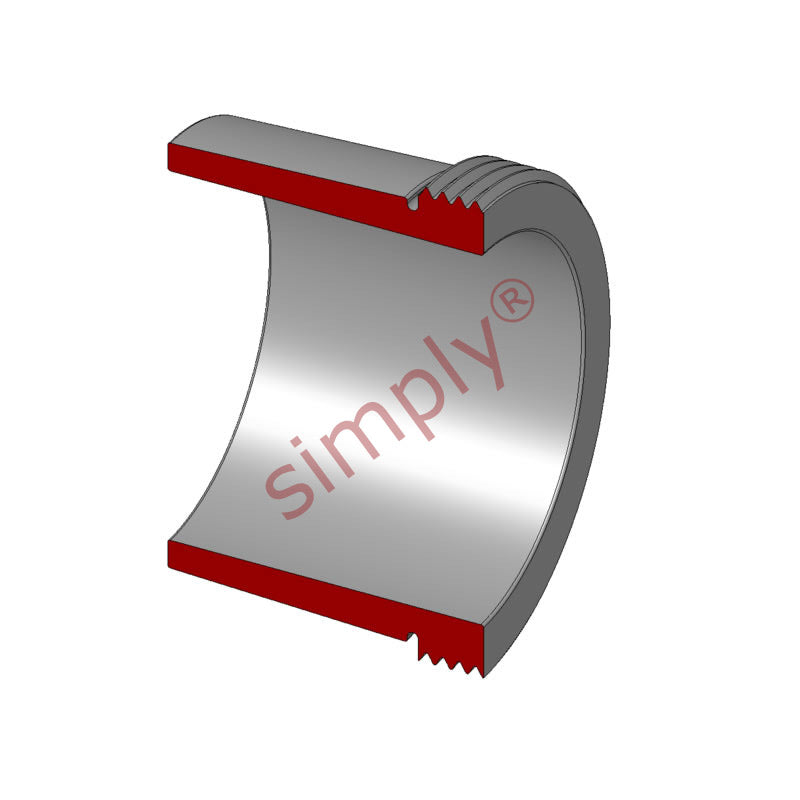

Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 170mm |
| d | = | 180mm |
| B1 | = | 116mm |
| B2 | = | 122mm |
| G | = | Thread 190x3mm |
| G1 | = | 19mm |
| Weight | = | 3.9 kg |

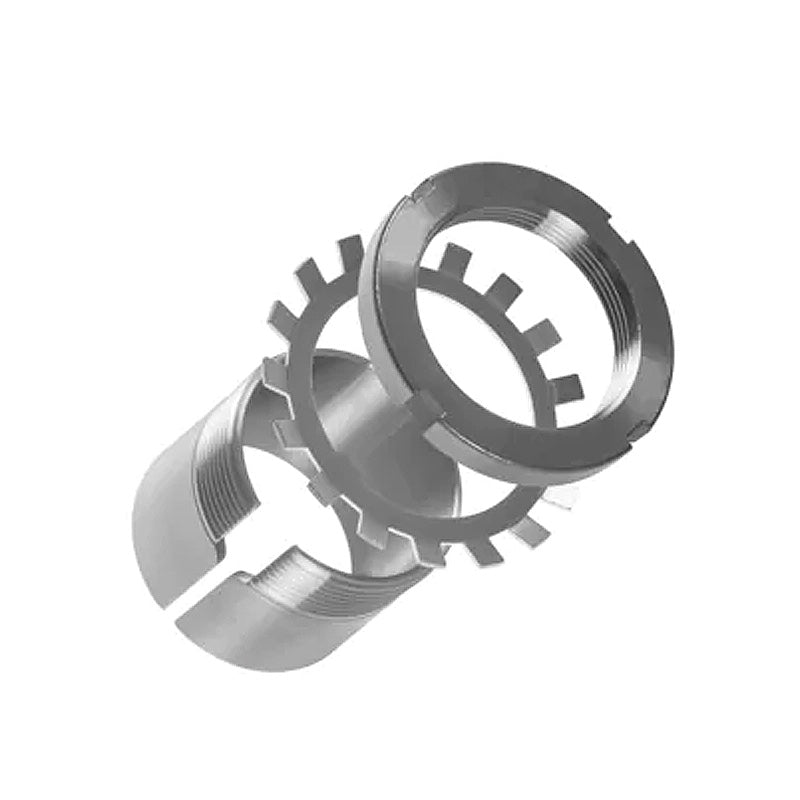

| --- | = | Assembly Parts |
| Sleeve | = | AH3136G |
| Nut | = | KM38 |
| Hydraulic nut | = | HMV38E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23136K+taper> | = | 23136K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3136K+taper> | = | C3136K< |
| /a> | = |
