SKU: AH24028-MB
Major Branded AH24028 Withdrawal Sleeve for 135mm shaft
- Regular price
- $526.25 ex VAT
- Sale price
- $526.25
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
$468.36
19
$442.05
29
$436.79
39
$431.53
49
$426.26
74
$421.00
99
$394.69
199
$389.43
249
$384.16
499
$378.90
999
$368.38
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 135mm |
| d | = | 140mm |
| B1 | = | 83mm |
| B2 | = | 93mm |
| G | = | Thread 145x2mm |
| G1 | = | 14mm |
| Weight | = | 0.95 kg |

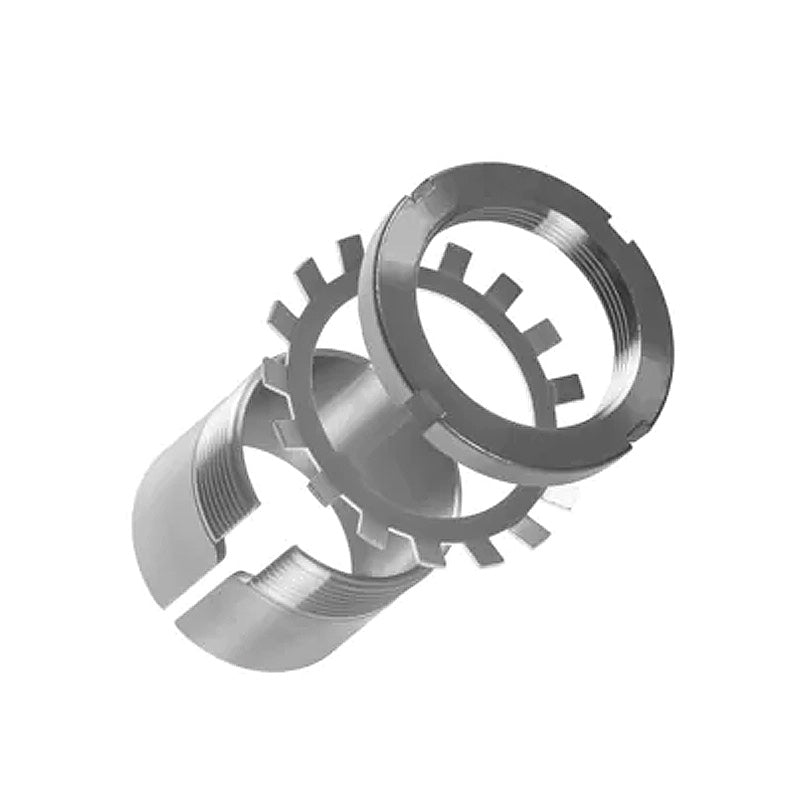

| --- | = | Assembly Parts |
| Sleeve | = | AH24028 |
| Nut | = | KM29 |
| Hydraulic nut | = | HMV29E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24028K+taper> | = | 24028K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4028K+taper> | = | C4028K< |
| /a> | = |
