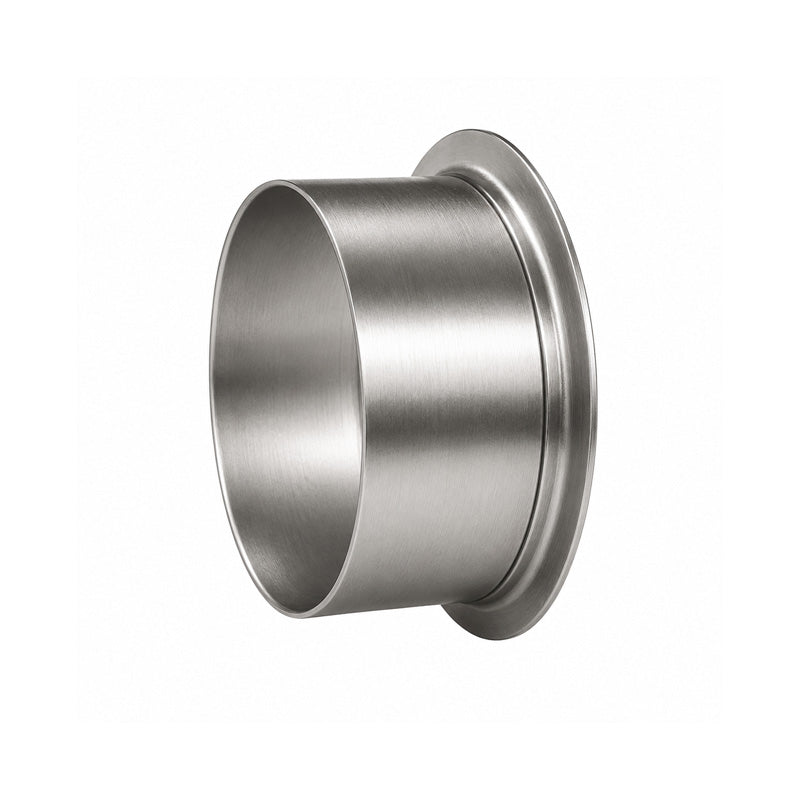

99174 Hardened Stainless Sturdi Sleeve for Shafts 1.747-1.753 inch

SKU: 99174

99174 Hardened Stainless Sturdi Sleeve for Shafts 1.747-1.753 inch

$40.01 ex VAT
$40.01
ex VAT
In stock

Quantity Price Breaks

10 $35.61
19 $33.61
29 $33.21
39 $32.81
49 $32.41
74 $32.01
99 $30.01
199 $29.61
249 $29.21
499 $28.81
999 $28.01
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
99174 Hardened Stainless Sturdi Sleeve for Shafts 1.747-1.753 inch
SKU: 99174

99174 Hardened Stainless Sturdi Sleeve for Shafts 1.747-1.753 inch

$40.01 ex VAT
$40.01
ex VAT

Description

Sturdi® Sleeve: The quickest and most sensible way to repair a worn shaft. The Sturdi® sleeve range offers the opportunity to repair seal counter faces on shafts without prior dismantling or machining of the equipment and once fitted offers superior surface and sealing characteristics often outperforming the original life span of the shaft. Speedi Sleeves are designed to repair shafts where oil seals run. The sleeve is sufficiently thin-walled (.011" or 0.28 mm) to allow the same size of seal to be used. The Sturdi® shaft repair sleeve is made of high quality stainless steel SAE 304. The surface is wear-resistant and machined without directionality to a finish of Ra = 10 to 20 micro inches or 0.25 to 0.5 µm.
Benefits: No dismantling of equipment, longer life cycle, cost effective.
Note: Sturdi® sleeves are only suitable for repairs where an oil seals needs to run, they cannot be used to repair damage where a bearing fits onto a shaft.

Technical

Nominal shaft diameter = 1.750 inch
Minimum shaft diameter = 1.747 inch
Maximum shaft diameter = 1.753 inch
Width B1 = 0.563 inch
Width B2 = 0.688 inch
Flange diameter D = 2.063 inch
Installation depth Ba = 0.813 inch
Weight = 0.022 kg
Material = SAE 304 Hardened Stainless
