SKU: 8508

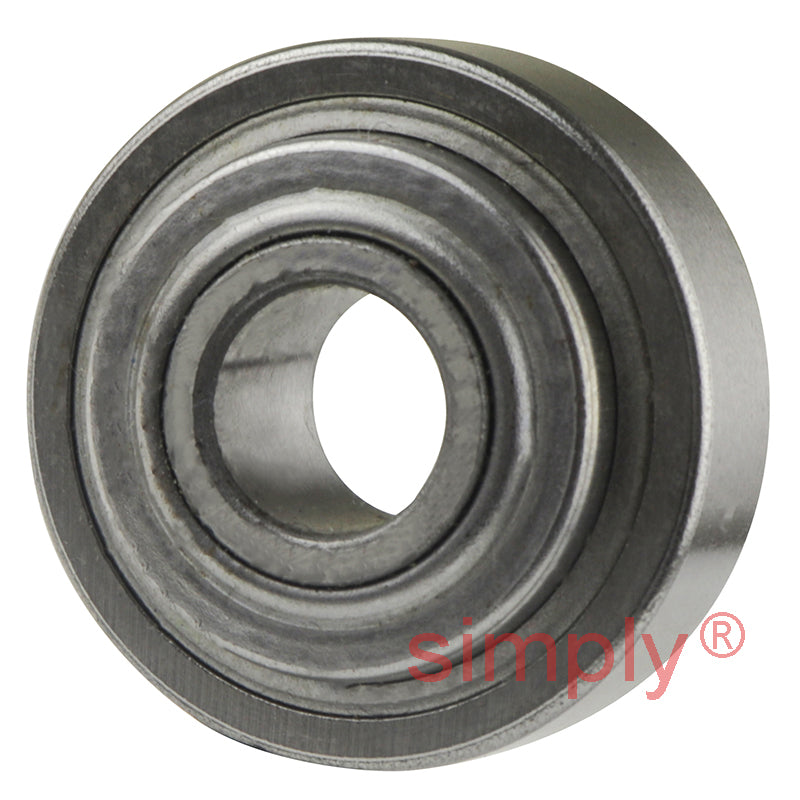

8508 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 40x80x24mm
- Regular price
- $90.56 ex VAT
- Sale price
- $90.56
- Regular price
-
Not in stock
Quantity Price Breaks
10
$80.60
19
$76.07
29
$75.16
39
$74.26
49
$73.35
74
$72.45
99
$67.92
199
$67.01
249
$66.11
499
$65.20
999
$63.39
SKU:
8508
8508 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 40x80x24mm
- Regular price
- $90.56 ex VAT
- Sale price
- $90.56
- Regular price
-
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |
Technical
| B | = | 40mm = 1.5748 inch |
| D | = | 80mm = 3.1496 inch |
| W | = | 24mm = 0.945 inch |
| Tolerance +0.0000 to minus | = | 0.0005 inch |
| Wo | = | 0.827 inch |
| Wi | = | 0.945 inch |
| r | = | 0.04 inch |
| No. of balls | = | 9 |
| Ball diameter | = | 15/32 inch |
| Static load | = | 2284 kN |
| Dynamic load | = | 1597 kN |
| Weight | = | 0.438 kg |
