SKU: 8504

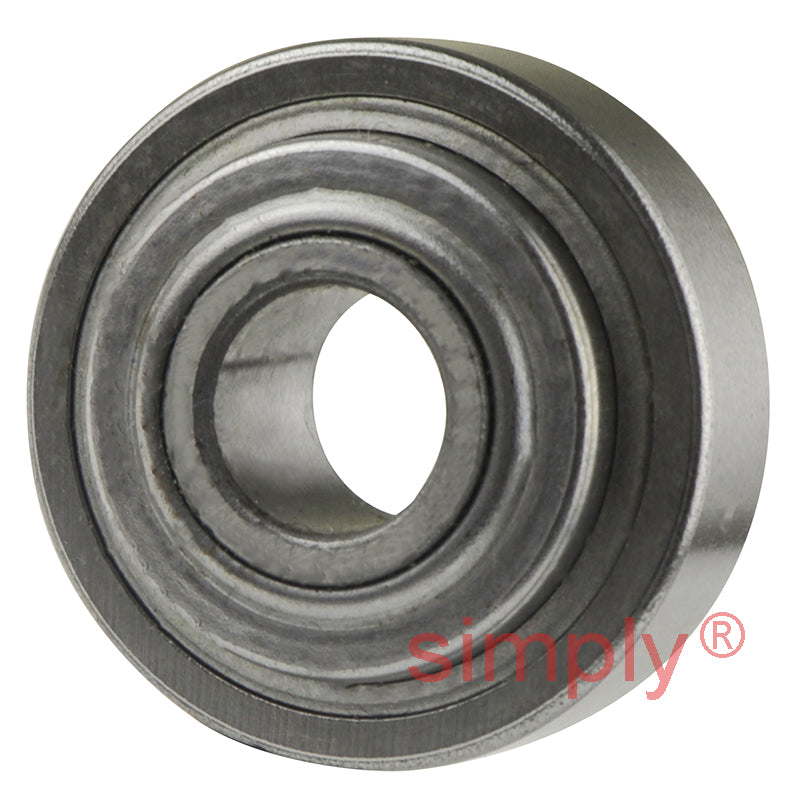

8504 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 20x47x15.88mm
- Regular price
- $89.86 ex VAT
- Sale price
- $89.86
- Regular price
-
Not in stock
Quantity Price Breaks
10
$79.98
19
$75.48
29
$74.58
39
$73.69
49
$72.79
74
$71.89
99
$67.40
199
$66.50
249
$65.60
499
$64.70
999
$62.90
SKU:
8504
8504 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 20x47x15.88mm
- Regular price
- $89.86 ex VAT
- Sale price
- $89.86
- Regular price
-
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |
Technical
| B | = | 20mm = 0.7874 inch |
| D | = | 47mm = 1.8504 inch |
| W | = | 15.88mm = 0.625 inch |
| Tolerance +0.0000 to minus | = | 0.0004 inch |
| Wo | = | 0.551 inch |
| Wi | = | 0.6 inch |
| r | = | 0.04 inch |
| No. of balls | = | 8 |
| Ball diameter | = | 5/16 inch |
| Static load | = | 1005 kN |
| Dynamic load | = | 630 kN |
| Weight | = | 0.11 kg |
