SKU: 8503

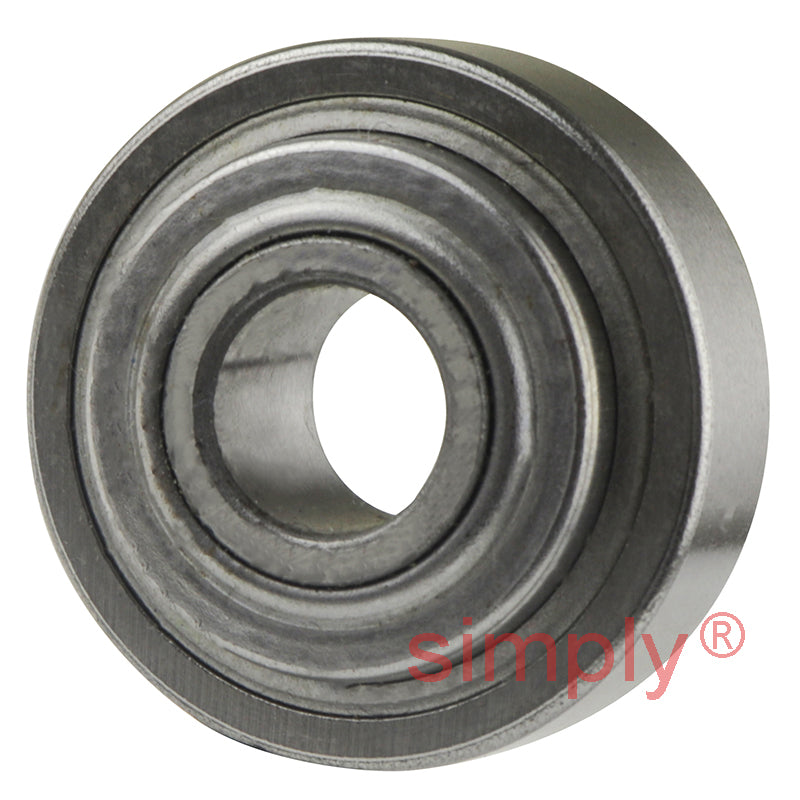

8503 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 17x40x14.29mm
- Regular price
- $51.92 ex VAT
- Sale price
- $51.92
- Regular price
-
Not in stock
Quantity Price Breaks
10
$46.21
19
$43.61
29
$43.09
39
$42.57
49
$42.06
74
$41.54
99
$38.94
199
$38.42
249
$37.90
499
$37.38
999
$36.34
SKU:
8503
8503 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 17x40x14.29mm
- Regular price
- $51.92 ex VAT
- Sale price
- $51.92
- Regular price
-
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |
Technical
| B | = | 17mm = 0.6693 inch |
| D | = | 40mm = 1.5748 inch |
| W | = | 14.29mm = 0.563 inch |
| Tolerance +0.0000 to minus | = | 0.0003 inch |
| Wo | = | 0.472 inch |
| Wi | = | 0.538 inch |
| r | = | 0.025 inch |
| No. of balls | = | 8 |
| Ball diameter | = | 17/64 inch |
| Static load | = | 751 kN |
| Dynamic load | = | 455 kN |
| Weight | = | 0.068 kg |
