SKU: 81134M.EU

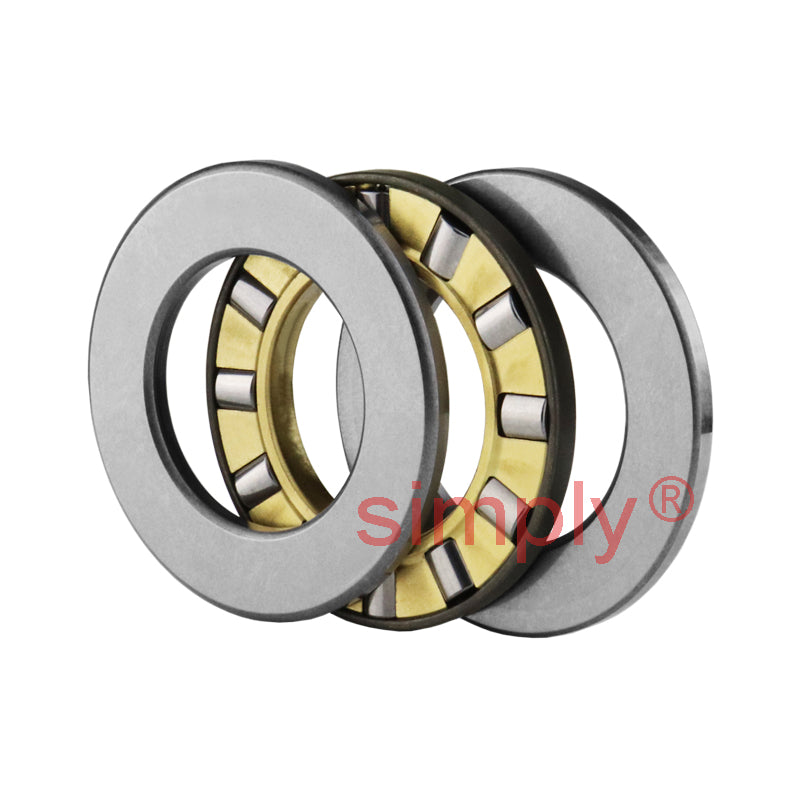

Premier Budget 81134M Cylindrical Roller Thrust Bearing with Brass Cage 170x215x34mm
- Regular price
- $585.20 ex VAT
- Sale price
- $585.20
- Regular price
-
Not in stock
Quantity Price Breaks
10
$520.83
19
$491.57
29
$485.72
39
$479.86
49
$474.01
74
$468.16
99
$438.90
199
$433.05
249
$427.20
499
$421.34
999
$409.64
SKU:
81134M.EU
Premier Budget 81134M Cylindrical Roller Thrust Bearing with Brass Cage 170x215x34mm
- Regular price
- $585.20 ex VAT
- Sale price
- $585.20
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 170mm |
| D | = | 215mm |
| H | = | 34mm |
| Dynamic load C | = | 285 kN |
| Static load Co | = | 1340 kN |
| Fatigue load limit Pu | = | 118 kN |
| Min load factor A | = | 0.11 |
| Reference speed | = | 800 rpm |
| Limiting speed | = | 1600 rpm |
| Cage reference | = | K81134M |
| Weight | = | 2.95 kg |
