SKU: 81108.TV.EU

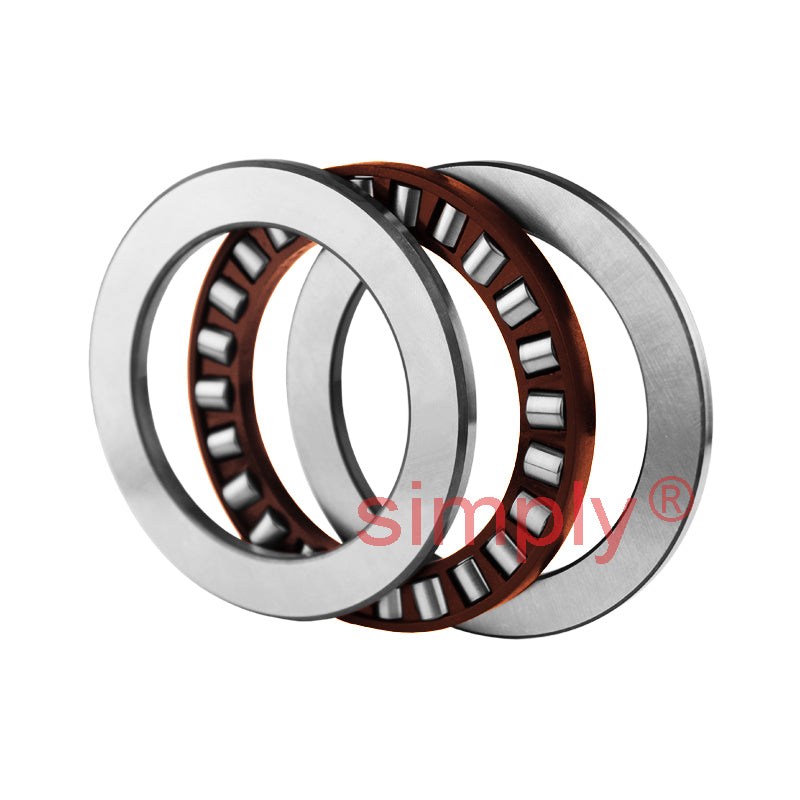

Premier Budget 81108TV Cylindrical Roller Thrust Bearing with Polyamide Cage 40x60x13mm
- Regular price
- $44.18 ex VAT
- Sale price
- $44.18
- Regular price
-
In stock
Quantity Price Breaks
10
$39.32
19
$37.11
29
$36.67
39
$36.23
49
$35.79
74
$35.34
99
$33.14
199
$32.69
249
$32.25
499
$31.81
999
$30.93
SKU:
81108.TV.EU
Premier Budget 81108TV Cylindrical Roller Thrust Bearing with Polyamide Cage 40x60x13mm
- Regular price
- $44.18 ex VAT
- Sale price
- $44.18
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 40mm |
| D | = | 60mm |
| H | = | 13mm |
| Dynamic load C | = | 43 kN |
| Static load Co | = | 137 kN |
| Fatigue load limit Pu | = | 13.7 kN |
| Min load factor A | = | 0.002 |
| Reference speed | = | 2400 rpm |
| Limiting speed | = | 5000 rpm |
| Cage reference | = | K81108TV |
| Weight | = | 0.11 kg |
