SKU: 80-3-SD-NO11-RENOLD
Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $40.37 ex VAT
- Sale price
- $40.37
- Regular price
-
Not in stock
Quantity Price Breaks
2
$35.93
5
$33.91
10
$33.51
29
$33.10
49
$32.70
75
$32.30
100
$30.28
200
$29.87
250
$29.47
500
$29.07
1000
$28.26
SKU:
80-3-SD-NO11-RENOLD
Renold SD 80-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $40.37 ex VAT
- Sale price
- $40.37
- Regular price
-
Description

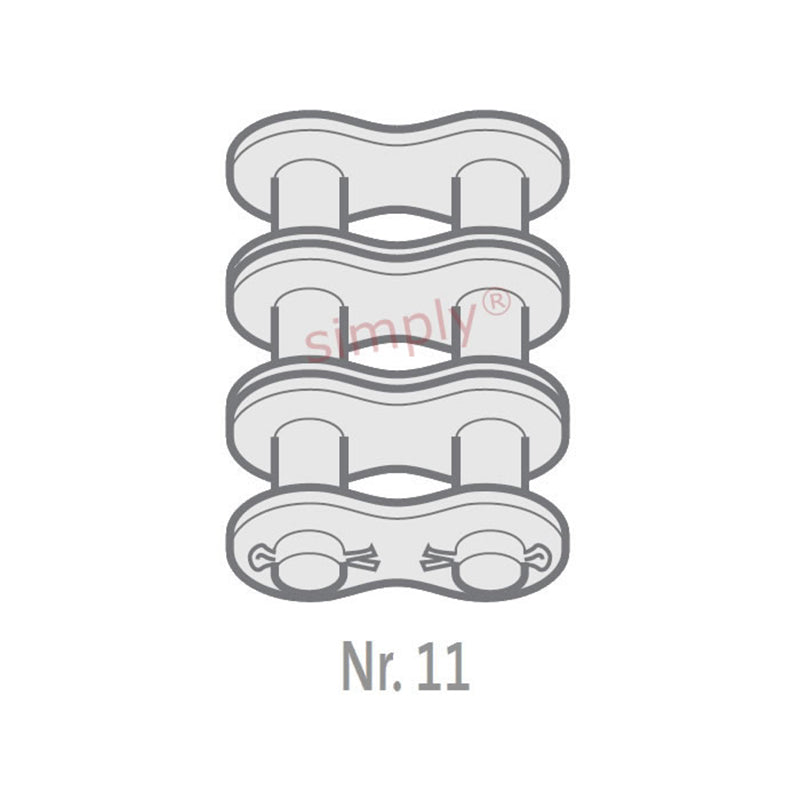

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.1mm |
| Plate Width Inner max (E) | = | 3.1mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 7.92mm |
| Pin Length max (H1) | = | 90mm |
| Connecting Link Extension max (J) | = | 6.3mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 29.29kg/m |
