SKU: 80-3-BB-NO26-RENOLD
Renold Blue Box 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $74.29 ex VAT
- Sale price
- $74.29
- Regular price
-
Not in stock
Quantity Price Breaks
2
$66.12
5
$62.40
10
$61.66
29
$60.92
49
$60.17
75
$59.43
100
$55.72
200
$54.97
250
$54.23
500
$53.49
1000
$52.00
SKU:
80-3-BB-NO26-RENOLD
Renold Blue Box 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $74.29 ex VAT
- Sale price
- $74.29
- Regular price
-
Description

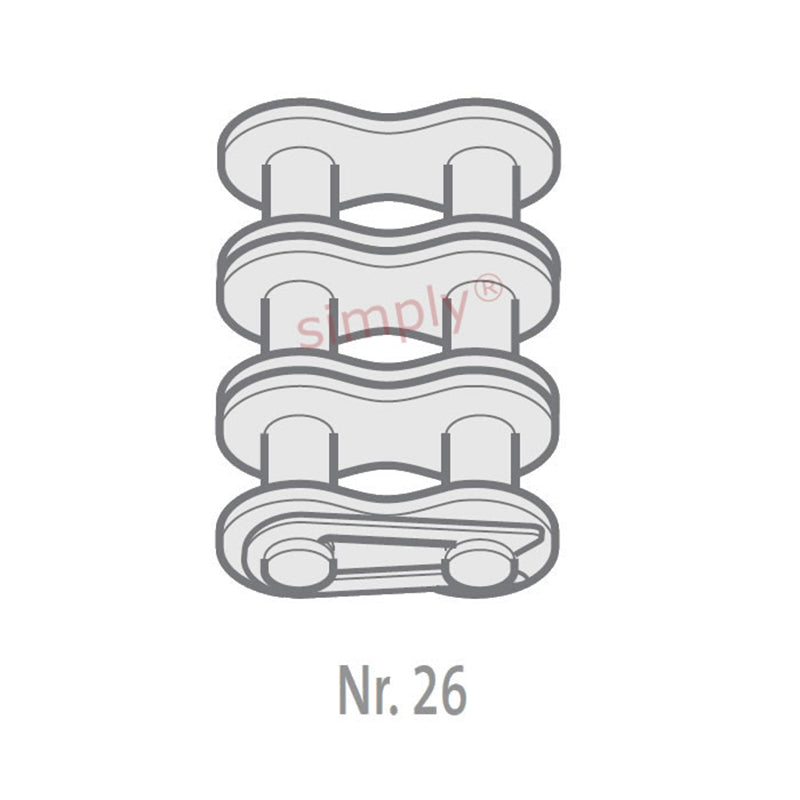

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 91.2mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 0.06kg/m |
