SKU: 80-2-SYN-NO26-RENOLD
Renold Synergy 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $121.19 ex VAT
- Sale price
- $121.19
- Regular price
-
Not in stock
Quantity Price Breaks
2
$107.86
5
$101.80
10
$100.59
29
$99.38
49
$98.16
75
$96.95
100
$90.89
200
$89.68
250
$88.47
500
$87.26
1000
$84.83
SKU:
80-2-SYN-NO26-RENOLD
Renold Synergy 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $121.19 ex VAT
- Sale price
- $121.19
- Regular price
-
Description

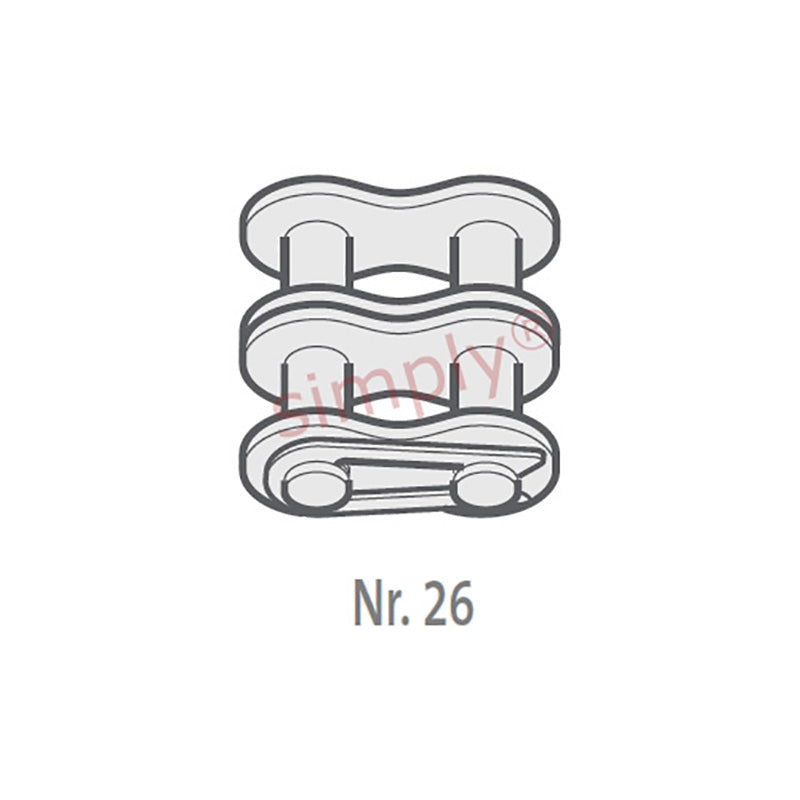

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 61.9mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 111200 N |
| Weight | = | 0.04kg/m |
