SKU: 80-2-SYN-NO12-RENOLD
Renold Synergy 80-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- $237.36 ex VAT
- Sale price
- $237.36
- Regular price
-
Not in stock
Quantity Price Breaks
2
$211.25
5
$199.38
10
$197.01
29
$194.64
49
$192.26
75
$189.89
100
$178.02
200
$175.65
250
$173.27
500
$170.90
1000
$166.15
SKU:
80-2-SYN-NO12-RENOLD
Renold Synergy 80-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- $237.36 ex VAT
- Sale price
- $237.36
- Regular price
-
Description

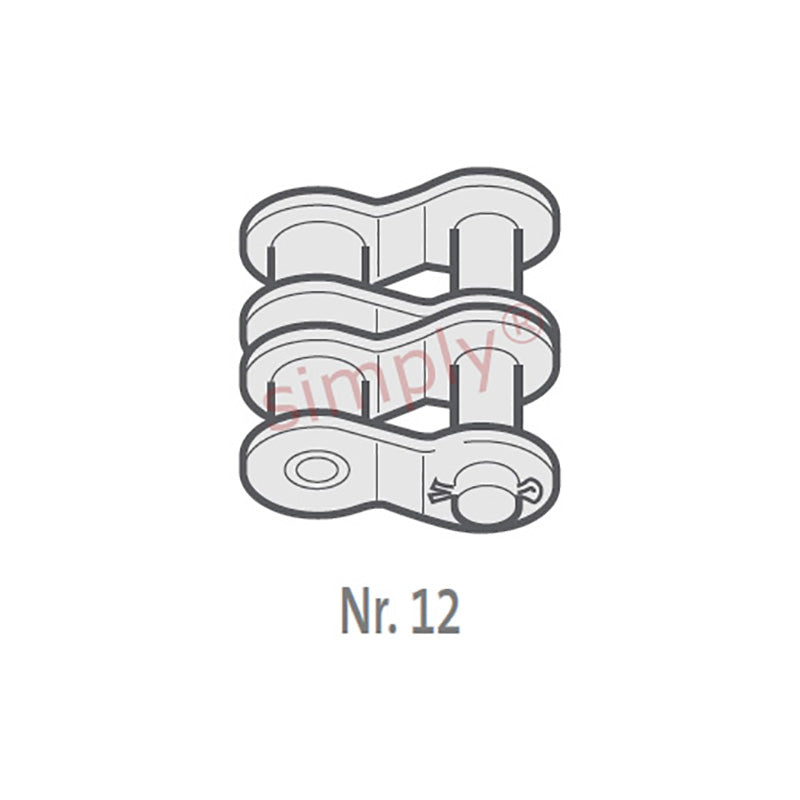

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 61.9mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 111200 N |
| Weight | = | 0.04kg/m |
