SKU: 711-151555_PK2

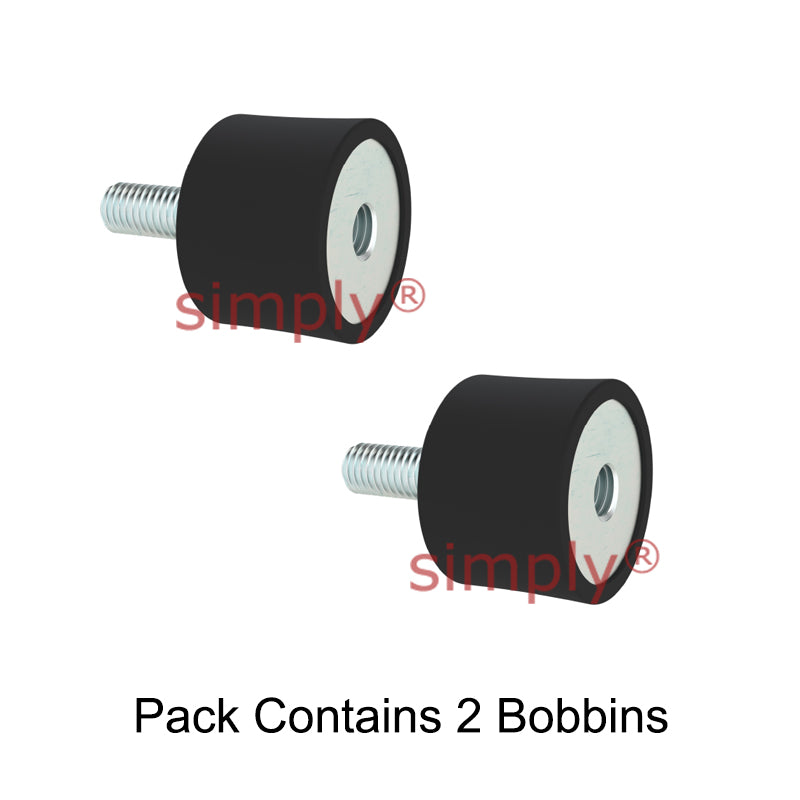

Pack of 2 High-Performance Male/Female Anti-Vibration Bobbin 15x15mm M4 Threads
- Regular price
- $9.59 ex VAT
- Sale price
- $9.59
- Regular price
-
In stock
Quantity Price Breaks
4
$8.54
9
$8.06
14
$7.96
19
$7.86
49
$7.77
74
$7.67
99
$7.19
199
$7.10
249
$7.00
499
$6.90
999
$6.71
SKU:
711-151555_PK2
Pack of 2 High-Performance Male/Female Anti-Vibration Bobbin 15x15mm M4 Threads
- Regular price
- $9.59 ex VAT
- Sale price
- $9.59
- Regular price
-
Description
Female to Male Bobbin Mounts: These female to male anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of Zinc plated corrosion resistant steel sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
Technical
| D | = | 15mm |
| D1 | = | M4 |
| D2 | = | M4 |
| L | = | 15mm |
| L1 | = | 8mm |
| L2 | = | 4mm |
| Deflection at Max Compressive Load | = | 23.6mm |
| Deflection at Max Sheer Load | = | 1.8mm |
| Max Compressive Load | = | 8.3 kg |
| Max Sheer Load | = | 3.6 kg |
| Temperature Range | = | -30 deg C to +80 deg C |
| Hardness | = | 55 Shore A Hardness |
| Weight | = | 0.01 kg |
| Nuts | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M4+steel+nut" |
| > | = | M4 Click Here< |
| /a> | = | |
| Set Screws | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M4+set+screw" |
| > | = | M4 Click Here< |
| /a> | = |
