SKU: 710-40351055

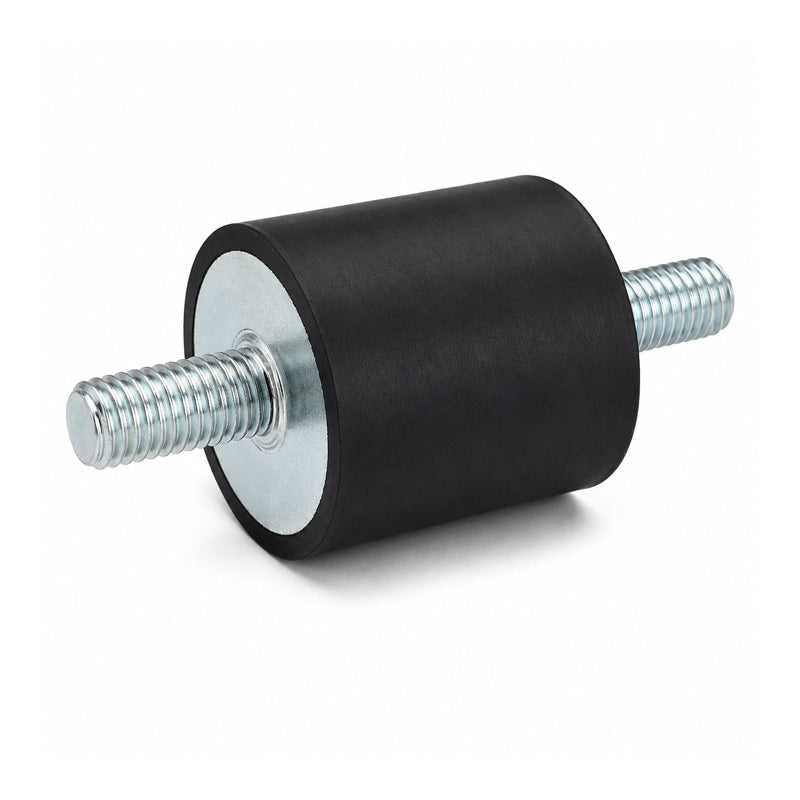

High-Performance Male/Male Anti-Vibration Bobbin 40x35mm M10 Threads
- Regular price
- $12.68 ex VAT
- Sale price
- $12.68
- Regular price
-
In stock
Quantity Price Breaks
4
$11.29
9
$10.65
14
$10.52
19
$10.40
49
$10.27
74
$10.14
99
$9.51
199
$9.38
249
$9.26
499
$9.13
999
$8.88
SKU:
710-40351055
High-Performance Male/Male Anti-Vibration Bobbin 40x35mm M10 Threads
- Regular price
- $12.68 ex VAT
- Sale price
- $12.68
- Regular price
-
Description
Male to Male Bobbin Mounts: These male to male anti-vibration mounts represent an ideal low-cost solution to your vibration dampening requirements. Constructed of Zinc plated corrosion resistant steel sandwiched between the rubber dampening element these simple mounts provide excellent levels of dampening and vibration absorption in either Compression or Shear or a combination of both.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
Technical
| D | = | 40mm |
| D1 | = | M10 |
| D2 | = | M10 |
| L | = | 35mm |
| L1 | = | 28mm |
| L2 | = | 28mm |
| Deflection at Max Compressive Load | = | 3.2mm |
| Deflection at Max Sheer Load | = | 6.7mm |
| Max Compressive Load | = | 78.2 kg |
| Max Sheer Load | = | 46.7 kg |
| Temperature Range | = | -30 deg C to +80 deg C |
| Hardness | = | 55 Shore A Hardness |
| Weight | = | 0.11 kg |
| Nuts | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M10+steel+nut" |
| > | = | M10 Click Here< |
| /a> | = | |
| Set Screws | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M10+set+screw" |
| > | = | M10 Click Here< |
| /a> | = |
