SKU: 6SR15-IDLER

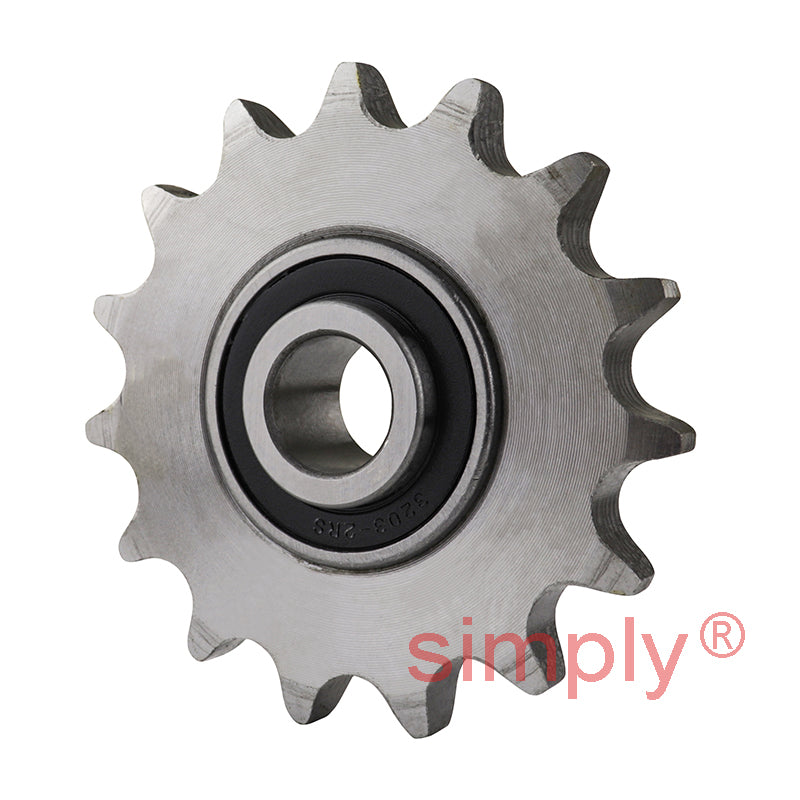

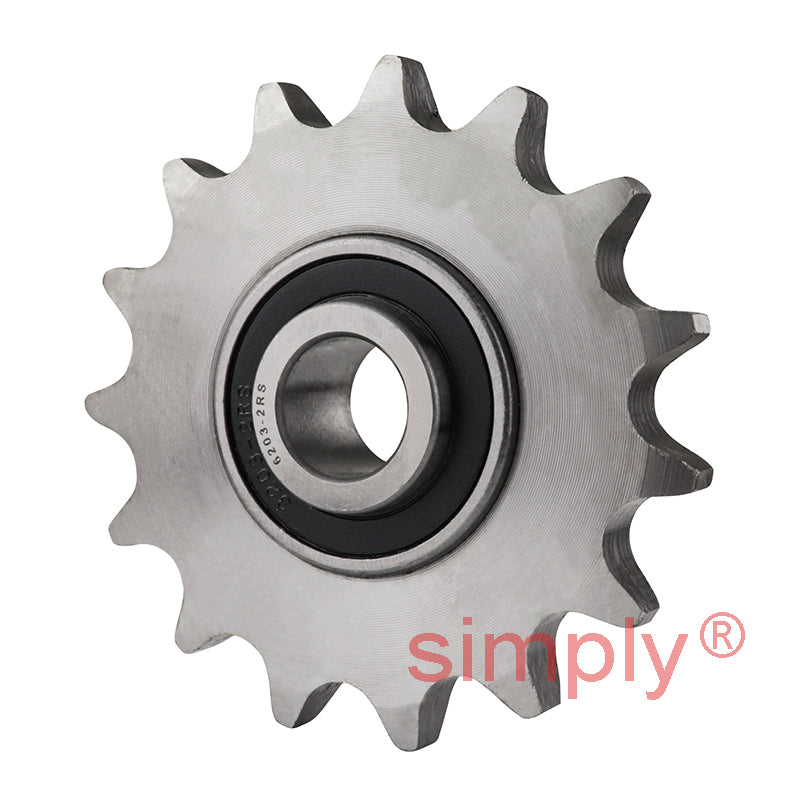

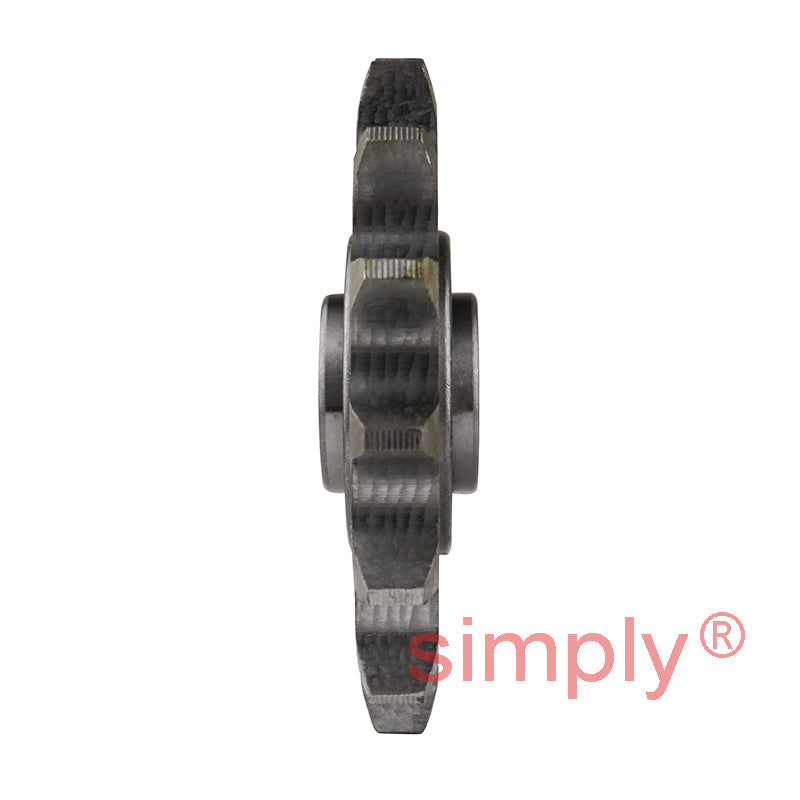

15 Tooth 12B Simplex Idler Sprocket for 3/4 Inch Pitch Chain
- Regular price
- $22.38 ex VAT
- Sale price
- $22.38
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
$19.92
9
$18.80
19
$18.58
29
$18.35
49
$18.13
74
$17.90
99
$16.79
199
$16.56
249
$16.34
499
$16.11
999
$15.67
Description
|
Idler Sprockets: Description
sprockets are manufactured to internationally recognised standards
DIN8187-ISOR 606 and are produced from C45 steel UNI EN 10083-1 having
a minimum strength of 600 Nmm 2. Conveniently stocked with an integral
ball bearing fitted (dimension ‘D’ for bore size)."
|

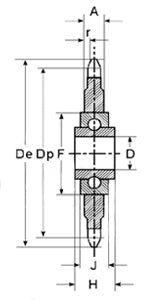

Technical
| No of Teeth | = | 15 |
| Pitch Chain Diameter Dp | = | 91.63mm |
| Outer Diameter De | = | 99.8mm |
| Bore Diameter | = | 16.2mm |
| Tooth Width A | = | 11.1mm |
| Hub Diameter F | = | 40mm |
| H | = | 18.3mm |
| J | = | 12mm |
| Chain Type | = | 12B-1 |
| 34x716 inch | = | Weight |
| 0.45 kg | = | N/A |
