SKU: 6314-2Z-HT-330

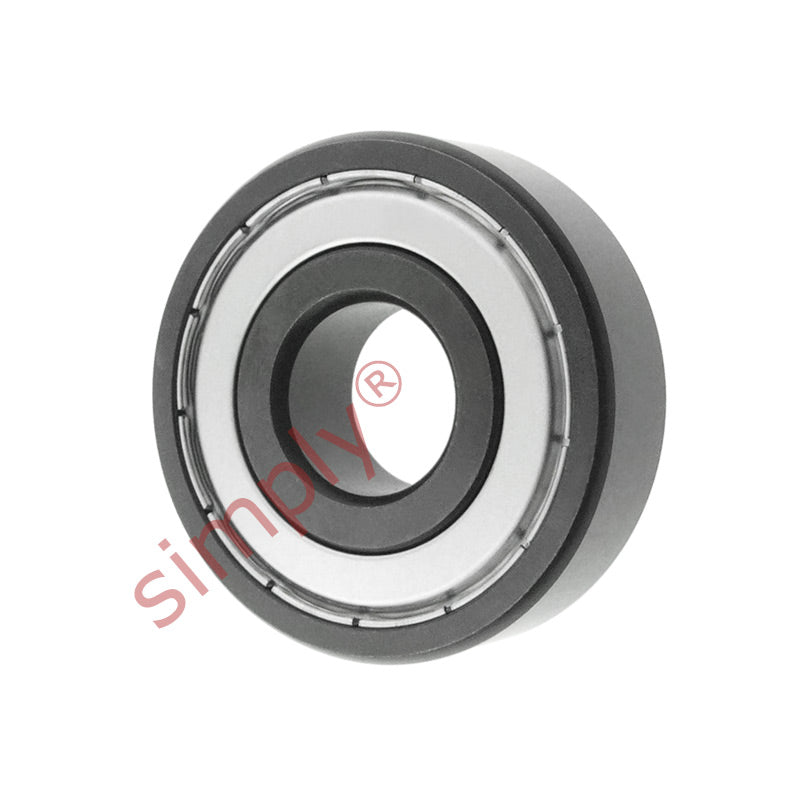

6314ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x150x35mm Max 45rpm
- Regular price
- $118.60 ex VAT
- Sale price
- $118.60
- Regular price
-
In stock
Quantity Price Breaks
3
$105.55
5
$99.62
10
$98.44
15
$97.25
20
$96.07
30
$94.88
40
$88.95
50
$87.76
60
$86.58
75
$85.39
100
$83.02
SKU:
6314-2Z-HT-330
6314ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x150x35mm Max 45rpm
- Regular price
- $118.60 ex VAT
- Sale price
- $118.60
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 70mm |
| Outside diameter D | = | 150mm |
| Width W | = | 35mm |
| Static load max | = | 39.1 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 45 rpm |
| Weight | = | 2500 g |
