SKU: 6309-HT-330

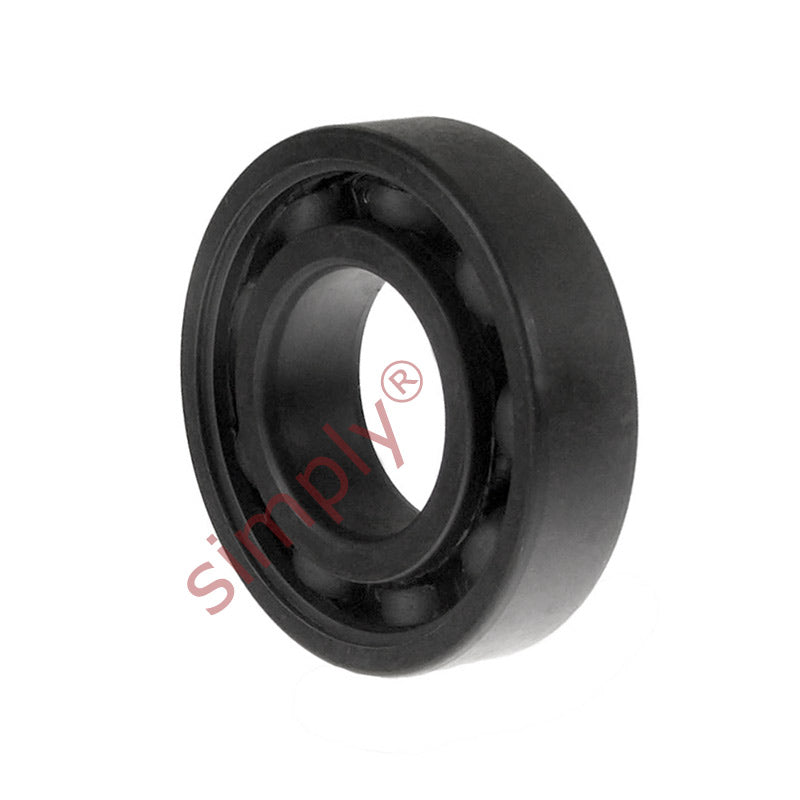

6309HT330 High Temp 330C Open Deep Groove Ball Bearing 45x100x25mm Max 75rpm
- Regular price
- $39.93 ex VAT
- Sale price
- $39.93
- Regular price
-
Not in stock
Quantity Price Breaks
3
$35.54
5
$33.54
10
$33.14
15
$32.74
20
$32.34
30
$31.94
40
$29.95
50
$29.55
60
$29.15
75
$28.75
100
$27.95
SKU:
6309-HT-330
6309HT330 High Temp 330C Open Deep Groove Ball Bearing 45x100x25mm Max 75rpm
- Regular price
- $39.93 ex VAT
- Sale price
- $39.93
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 45mm |
| Outside diameter D | = | 100mm |
| Width W | = | 25mm |
| Static load max | = | 18.5 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 75 rpm |
| Weight | = | 830 g |
