SKU: 6309-2Z-HT-330

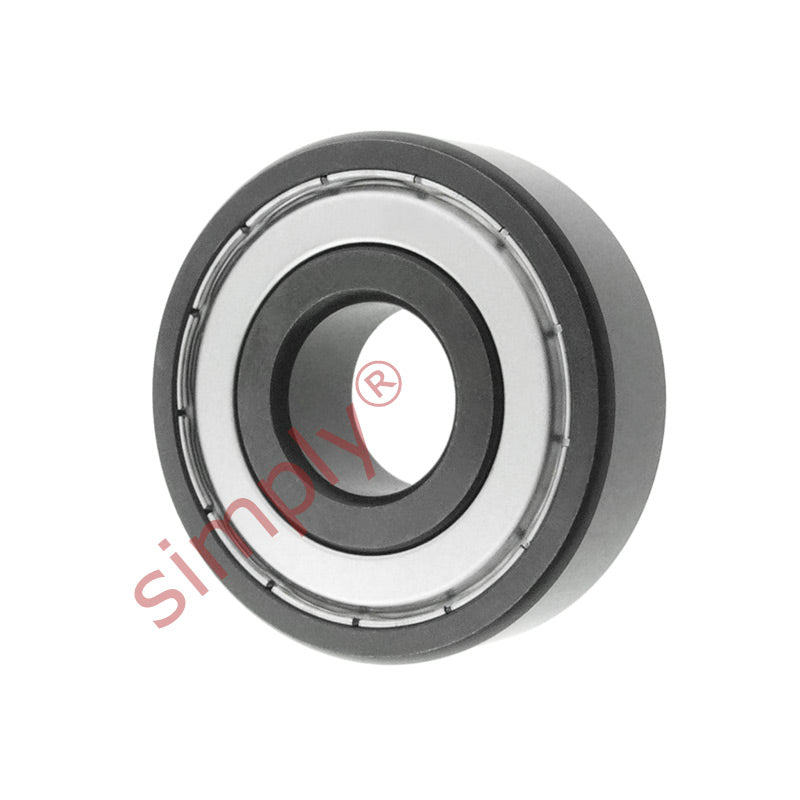

6309ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 45x100x25mm Max 75rpm
- Regular price
- $56.90 ex VAT
- Sale price
- $56.90
- Regular price
-
In stock
Quantity Price Breaks
3
$50.64
5
$47.80
10
$47.23
15
$46.66
20
$46.09
30
$45.52
40
$42.68
50
$42.11
60
$41.54
75
$40.97
100
$39.83
SKU:
6309-2Z-HT-330
6309ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 45x100x25mm Max 75rpm
- Regular price
- $56.90 ex VAT
- Sale price
- $56.90
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 45mm |
| Outside diameter D | = | 100mm |
| Width W | = | 25mm |
| Static load max | = | 18.5 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 75 rpm |
| Weight | = | 830 g |
