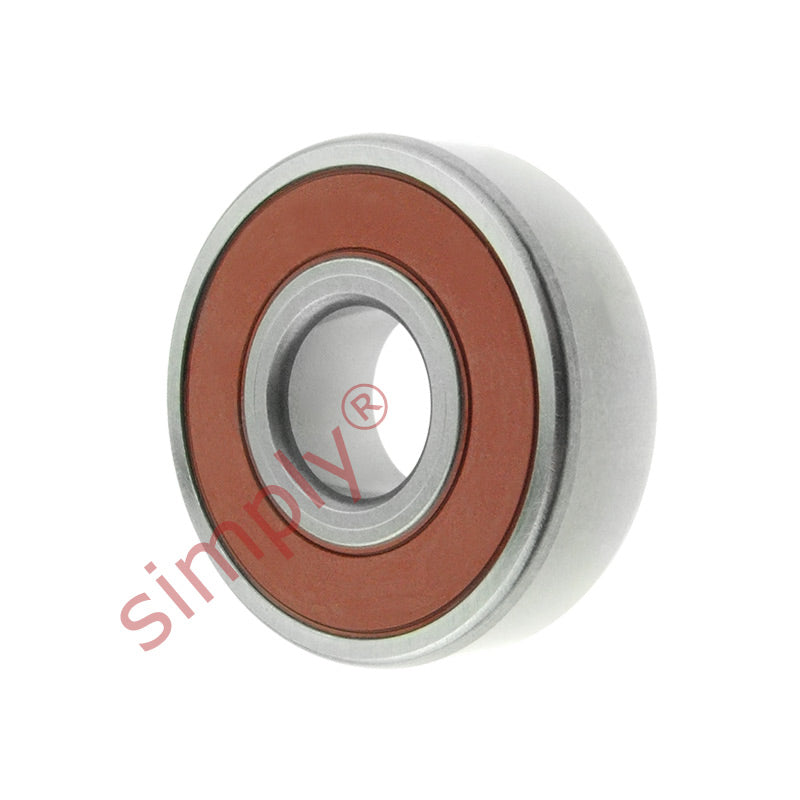

63092RSHT150 High Temp 150C Rubber Sealed Deep Groove Ball Bearing 45x100x25mm Max 3000rpm

SKU: 6309-2RS-HT-150

63092RSHT150 High Temp 150C Rubber Sealed Deep Groove Ball Bearing 45x100x25mm Max 3000rpm

$71.85 ex VAT
$71.85
ex VAT
Equivalent to: 63092RSHC3GJN
Not in stock

Quantity Price Breaks

3 $63.95
5 $60.35
10 $59.64
15 $58.92
20 $58.20
30 $57.48
40 $53.89
50 $53.17
60 $52.45
75 $51.73
100 $50.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
63092RSHT150 High Temp 150C Rubber Sealed Deep Groove Ball Bearing 45x100x25mm Max 3000rpm
SKU: 6309-2RS-HT-150

63092RSHT150 High Temp 150C Rubber Sealed Deep Groove Ball Bearing 45x100x25mm Max 3000rpm

$71.85 ex VAT
$71.85
ex VAT

Description

HT150 Series High-Temperature Range Deep Groove Ball Bearings: With an operating range from minus 30 degrees up to plus 150 degrees Celsius these bearings are ideally situated in arduous conditions where rapid temperature changes are expected, refrigeration and baking equipment being a good example. Of standard ball bearing construction with C4 clearance they are manufactured with rubber seals inserted into the outer raceway, these fit in close proximity to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled NLGI scale 2-3 grease in the bearing.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, wide operating temperature

Technical

Inside diameter d = 45mm
Outside diameter D = 100mm
Width W = 25mm
Static load max = 31.6 kN
Max operating temperature = 150 deg Celcius
Maximum speed = 3000 rpm
Weight = 830 g
