SKU: 6308-2Z-HT-330

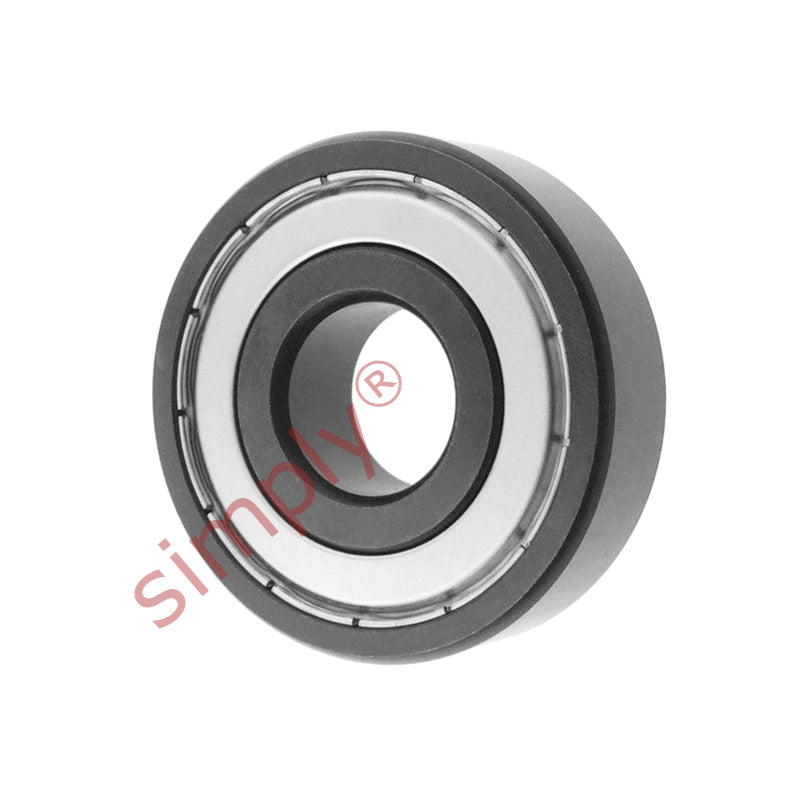

6308ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 40x90x23mm Max 80rpm
- Regular price
- $43.92 ex VAT
- Sale price
- $43.92
- Regular price
-
In stock
Quantity Price Breaks
3
$39.09
5
$36.89
10
$36.45
15
$36.01
20
$35.58
30
$35.14
40
$32.94
50
$32.50
60
$32.06
75
$31.62
100
$30.74
SKU:
6308-2Z-HT-330
6308ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 40x90x23mm Max 80rpm
- Regular price
- $43.92 ex VAT
- Sale price
- $43.92
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 40mm |
| Outside diameter D | = | 90mm |
| Width W | = | 23mm |
| Static load max | = | 14.45 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 80 rpm |
| Weight | = | 620 g |
