SKU: 6308-2NSE-NACHI

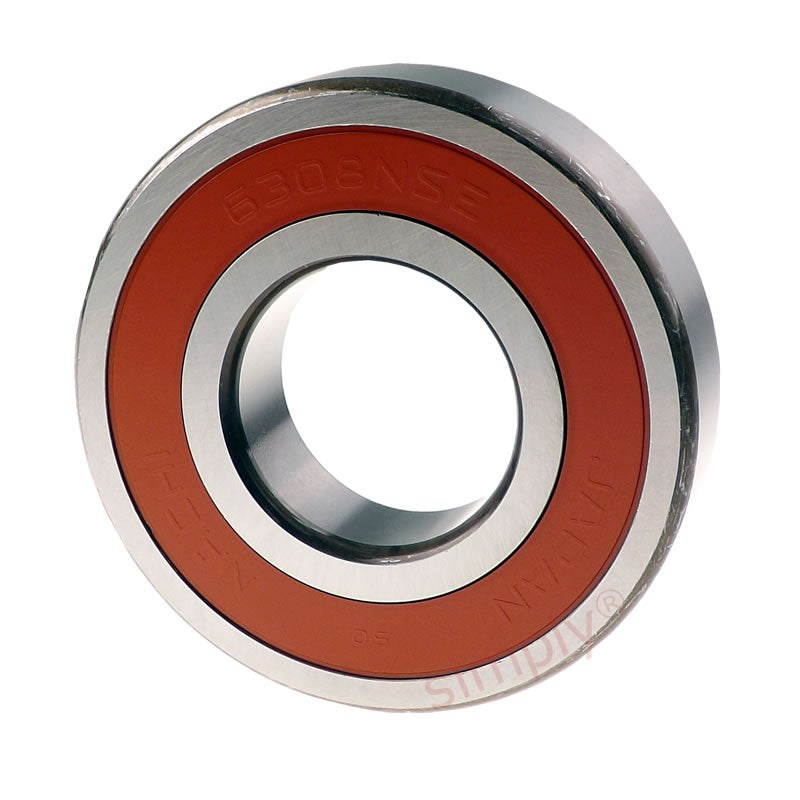

NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
- Regular price
- $52.49 ex VAT
- Sale price
- $52.49
- Regular price
-
In stock
Quantity Price Breaks
5
$46.72
9
$44.09
19
$43.57
29
$43.04
49
$42.52
74
$41.99
99
$39.37
199
$38.84
249
$38.32
499
$37.79
999
$36.74
SKU:
6308-2NSE-NACHI
NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
- Regular price
- $52.49 ex VAT
- Sale price
- $52.49
- Regular price
-
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Technical
| Inside Diameter d | = | 40mm |
| Outside Diameter D | = | 90mm |
| Width B | = | 23mm |
| Min radius r | = | 1.5mm |
| Dynamic load | = | 40500 kN |
| Static load | = | 24100 kN |
| Max speed | = | 7800 rpm |
| da min | = | 49mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
| Weight | = | 0.633 kg |
