SKU: 6307N-FAG

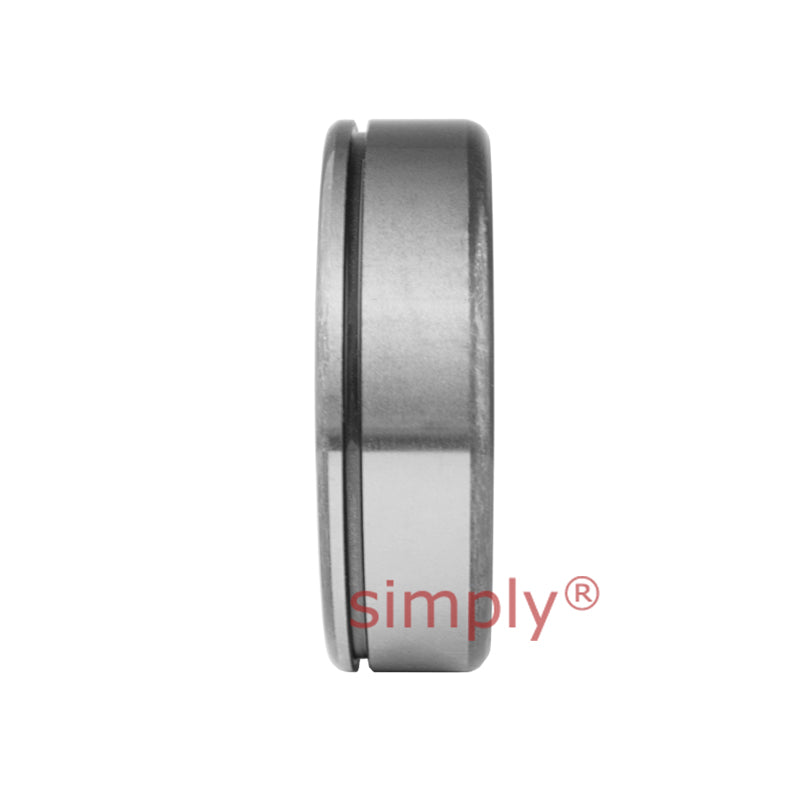

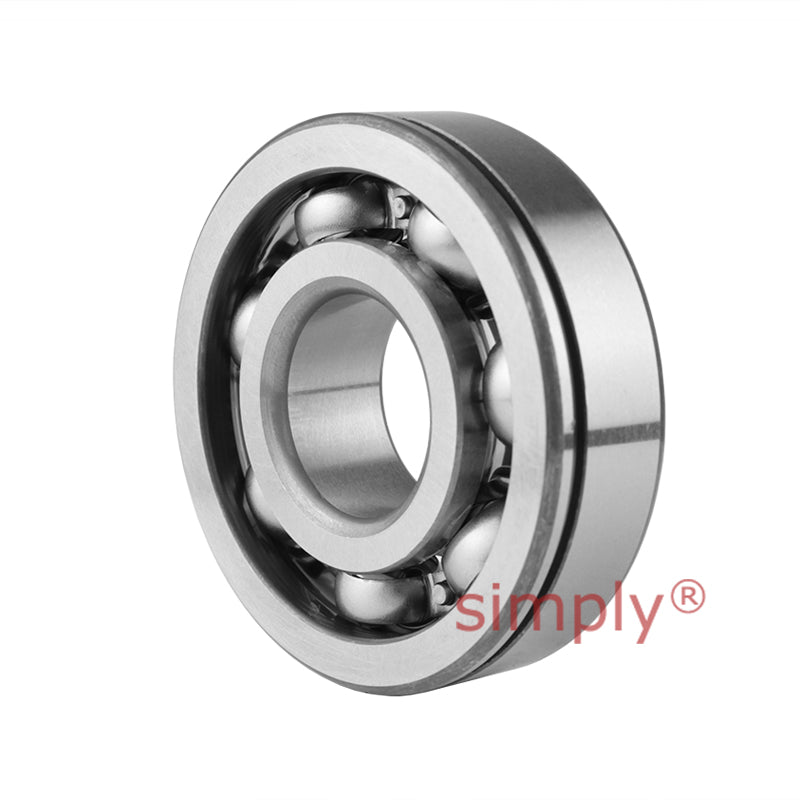

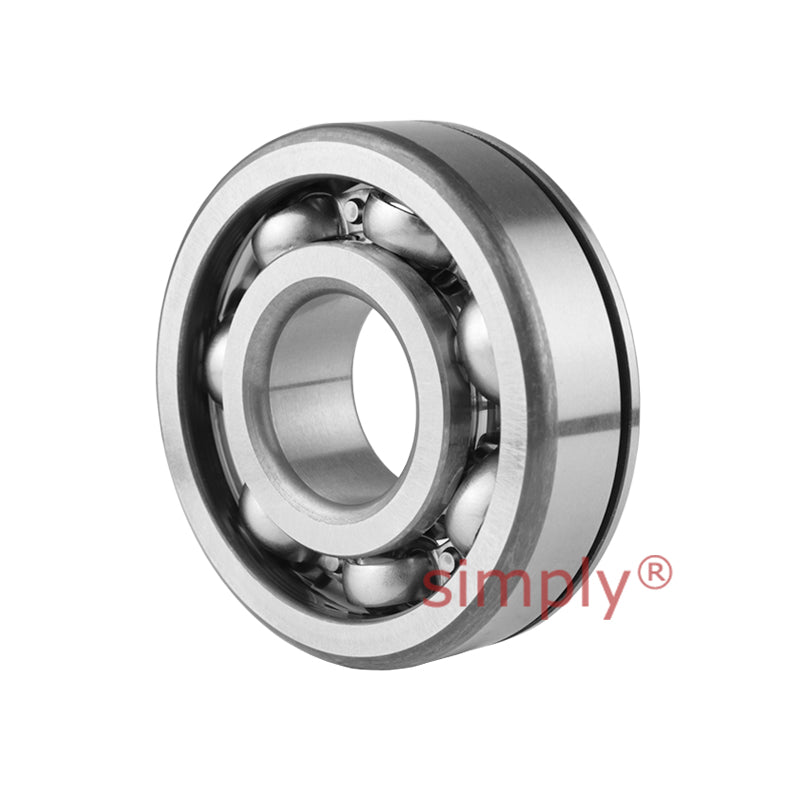

FAG 6307N Deep Groove Ball Bearing with Snap Ring Groove 35x80x21mm
- Regular price
- $47.30 ex VAT
- Sale price
- $47.30
- Regular price
-
In stock
Quantity Price Breaks
10+
$42.10
19+
$39.73
29+
$39.26
39+
$38.79
49+
$38.31
74+
$37.84
99+
$35.48
199+
$35.00
249+
$34.53
499+
$34.06
999+
$33.11
SKU:
6307N-FAG
FAG 6307N Deep Groove Ball Bearing with Snap Ring Groove 35x80x21mm
- Regular price
- $47.30 ex VAT
- Sale price
- $47.30
- Regular price
-
Description
Open Deep Groove Ball Bearings with Snap Ring Groove: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. These bearings have a groove on the outside diameter to allow the use of a snap ring. (Not Supplied).
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution

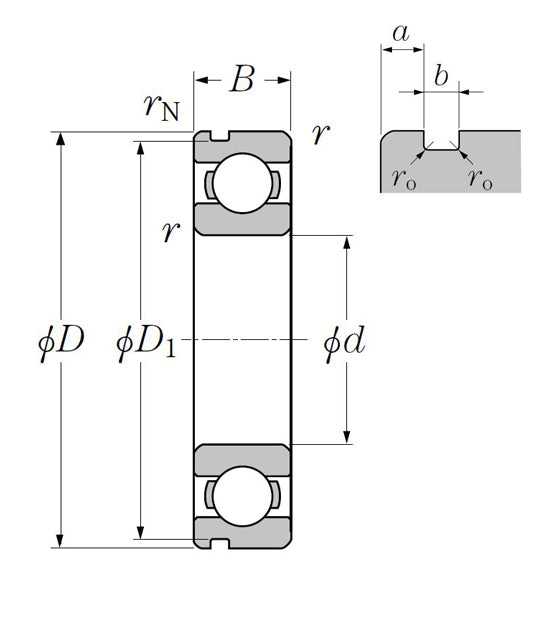

Technical
| d | = | 35mm |
| D | = | 80mm |
| B | = | 21mm |
| Dyamic load C | = | 35.1 kN |
| Static load Co | = | 19 kN |
| Fatigue load limit Pu | = | 0.82 kN |
| Reference speed | = | 19000 rpm |
| Limiting speed | = | 12000 rpm |
| Mass | = | 0.46 kg |
| D1 | = | 76.81mm |
| a | = | 3.28mm |
| b | = | 1.9mm |
