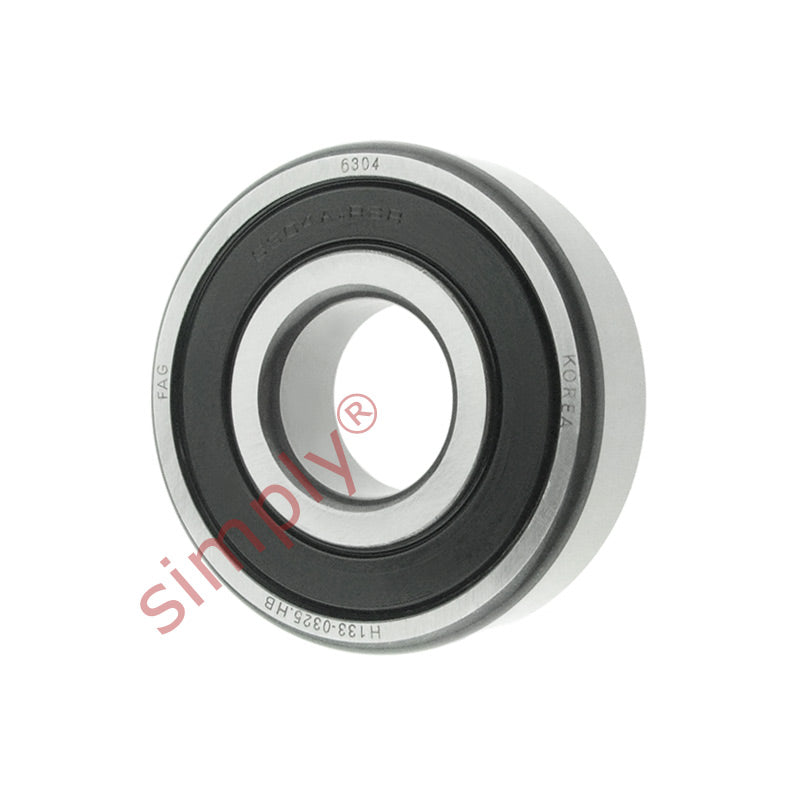

FAG 63042RSR Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
FAG
FAG 63042RSR Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
FAG

SKU: 6304-2RSR-FAG

FAG 63042RSR Rubber Sealed Deep Groove Ball Bearing 20x52x15mm

$18.97 ex VAT
$18.97
ex VAT
Equivalent to: 6304NSE 6304DU 6304RS 6304RSH 6304P 6304RSR 6304LU 63042NSE 6304DDU 63042RS 63042RS1 63042RSH 6304PP 6304LLU
In stock

Quantity Price Breaks

10+ $16.88
19+ $15.93
29+ $15.75
39+ $15.56
49+ $15.37
74+ $15.18
99+ $14.23
199+ $14.04
249+ $13.85
499+ $13.66
999+ $13.28
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 63042RSR Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
FAG
SKU: 6304-2RSR-FAG

FAG 63042RSR Rubber Sealed Deep Groove Ball Bearing 20x52x15mm

$18.97 ex VAT
$18.97
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 20mm
D = 52mm
B = 15mm
Dynamic load C = 16.8 kN
Static load Co = 7.8 kN
Fatigue load limit Pu = 0.335 kN
Reference speed = 30000 rpm
Limiting speed = 9500 rpm
Mass = 0.14 kg
d2 = 27.2mm
D2 = 44.8mm
r1r2 min = 1.1mm
da min = 27
