6303HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 17x47x14mm Max 1295rpm

SKU: 6303-HT-270

6303HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 17x47x14mm Max 1295rpm

$23.68 ex VAT
$23.68
ex VAT
Equivalent to: 6303VA201 6303VA208 6303VA228
Not in stock

Quantity Price Breaks

3 $21.08
5 $19.89
10 $19.65
15 $19.42
20 $19.18
30 $18.94
40 $17.76
50 $17.52
60 $17.29
75 $17.05
100 $16.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
6303HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 17x47x14mm Max 1295rpm
SKU: 6303-HT-270

6303HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 17x47x14mm Max 1295rpm

$23.68 ex VAT
$23.68
ex VAT

Description

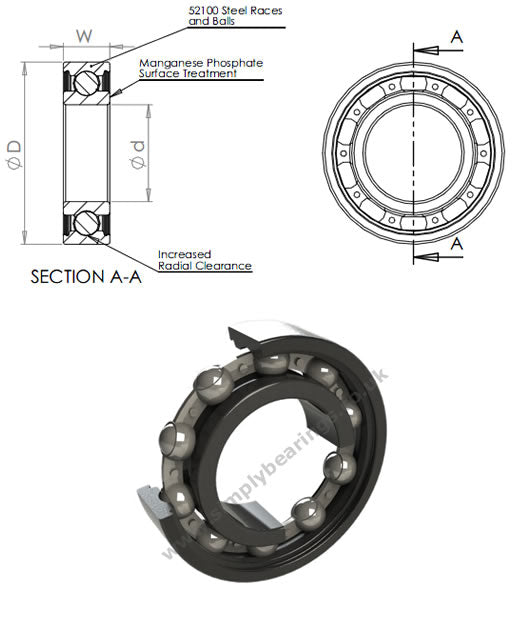

HT270 Series High-Temperature Range Deep Groove Ball Bearings: With an operating range from minus 25 degrees up to plus 270 degrees Celsius these bearings are ideally situated in arduous conditions where rapid temperature changes are expected, refrigeration and baking equipment being a good example. Of standard ball bearing construction with an increased radial clearance to compensate for thermal expansion, they are manufactured without seals or shields. The bearings have a BLACK MANGANESE PHOSHPATE coating to the bearings outer surfaces
Benefits: Wide operating temperature range, can be re-lubricated

Technical

Inside diameter d = 17mm
Outside diameter D = 47mm
Width W = 14mm
Static load max = 3.79 kN
Max operating temperature = 270 deg Celcius
Maximum speed = 1295 rpm
Weight = 120 g
