SKU: 6303-FAG

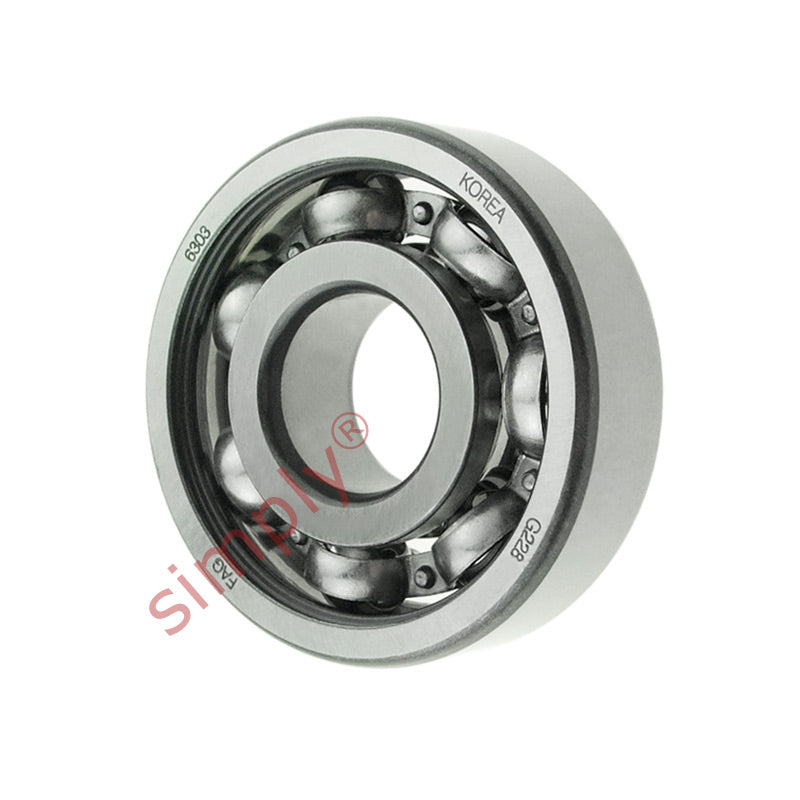

FAG 6303 Open Deep Groove Ball Bearing 17x47x14mm
- Regular price
- $11.45 ex VAT
- Sale price
- $11.45
- Regular price
-
In stock
Quantity Price Breaks
10+
$10.19
19+
$9.62
29+
$9.50
39+
$9.39
49+
$9.27
74+
$9.16
99+
$8.59
199+
$8.47
249+
$8.36
499+
$8.24
999+
$8.02
SKU:
6303-FAG
FAG 6303 Open Deep Groove Ball Bearing 17x47x14mm
- Regular price
- $11.45 ex VAT
- Sale price
- $11.45
- Regular price
-
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 17mm |
| D | = | 47mm |
| B | = | 14mm |
| Dynamic load C | = | 14.3 kN |
| Static load Co | = | 6.55 kN |
| Fatigue load limit Pu | = | 0.275 kN |
| Reference speed | = | 34000 rpm |
| Limiting speed | = | 22000 rpm |
| Mass | = | 0.12 kg |
| d1 | = | 26.5mm |
| D1 | = | 37.4mm |
| D2 | = | 39.7mm |
| r1r2 min | = | 1mm |
| da min | = | 22.6mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 12 |
