SKU: 6303-2Z-HT-330

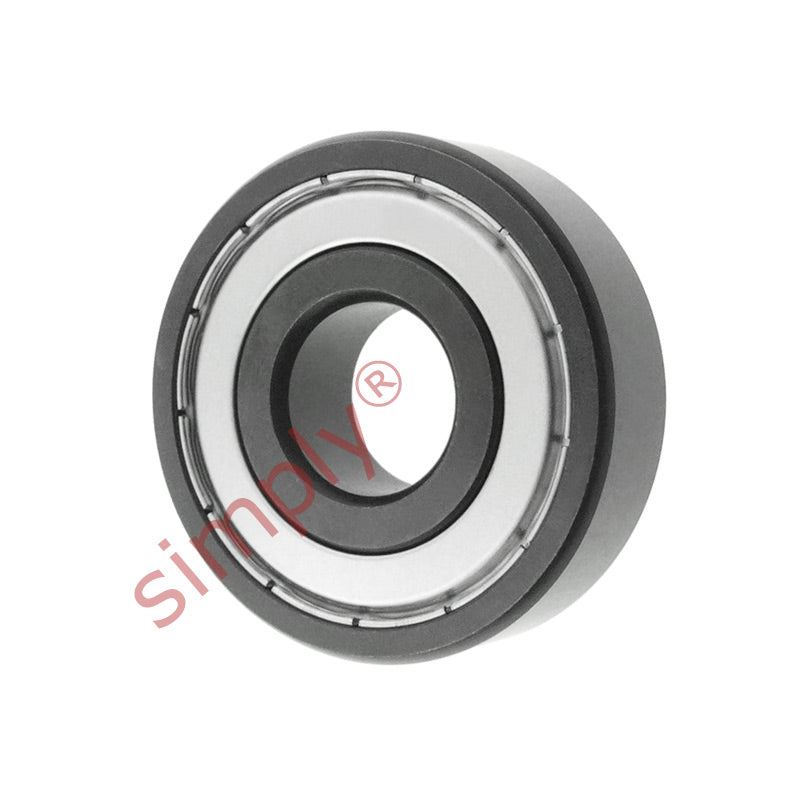

6303ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x47x14mm Max 175rpm
- Regular price
- $27.55 ex VAT
- Sale price
- $27.55
- Regular price
-
In stock
Quantity Price Breaks
3
$24.52
5
$23.14
10
$22.87
15
$22.59
20
$22.32
30
$22.04
40
$20.66
50
$20.39
60
$20.11
75
$19.84
100
$19.29
SKU:
6303-2Z-HT-330
6303ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x47x14mm Max 175rpm
- Regular price
- $27.55 ex VAT
- Sale price
- $27.55
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 17mm |
| Outside diameter D | = | 47mm |
| Width W | = | 14mm |
| Static load max | = | 3.79 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 175 rpm |
| Weight | = | 120 g |
