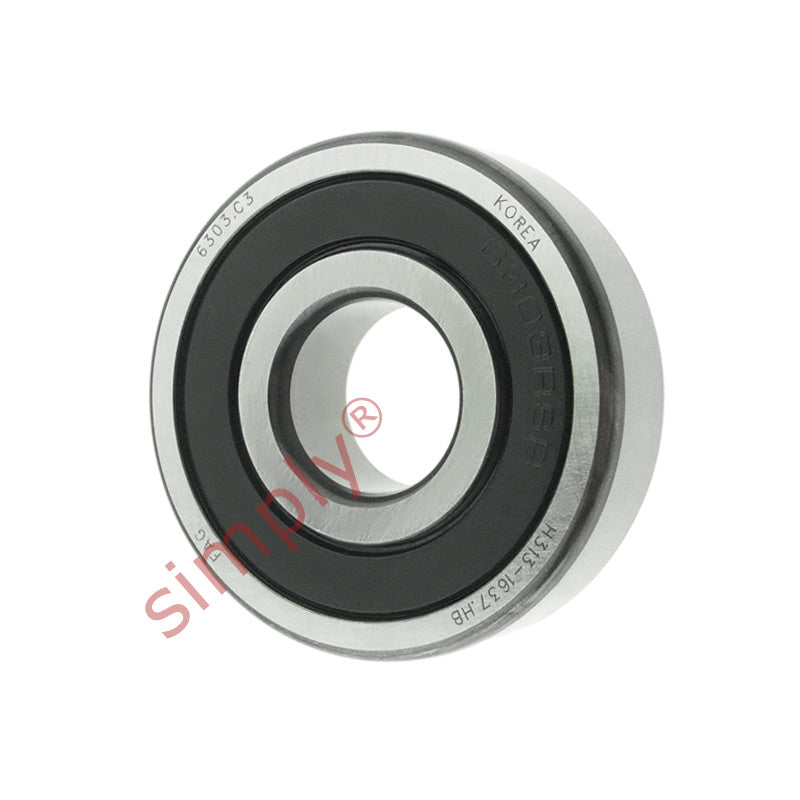

FAG 63032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
FAG
FAG 63032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
FAG

SKU: 6303-2RSR/C3-FAG

FAG 63032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x47x14mm

$16.41 ex VAT
$16.41
ex VAT
Equivalent to: 6303NSEC3 6303DUC3 6303RSC3 6303RSHC3 6303PC3 6303RSRC3 6303LUC3 63032NSEC3 6303DDUC3 63032RSC3 63032RS1C3 63032RSHC3 6303PPC3 6303LLU
In stock

Quantity Price Breaks

10+ $14.60
19+ $13.78
29+ $13.62
39+ $13.46
49+ $13.29
74+ $13.13
99+ $12.31
199+ $12.14
249+ $11.98
499+ $11.82
999+ $11.49
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 63032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
FAG
SKU: 6303-2RSR/C3-FAG

FAG 63032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x47x14mm

$16.41 ex VAT
$16.41
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 17mm
D = 47mm
B = 14mm
Dynamic load C = 14.3 kN
Static load Co = 6.55 kN
Fatigue load limit Pu = 0.275 kN
Reference speed = 34000 rpm
Limiting speed = 11000 rpm
Mass = 0.12 kg
d2 = 24mm
D2 = 39.7mm
r1r2 min = 1mm
da min = 22.6
