SKU: 6300-2Z/C3-FAG

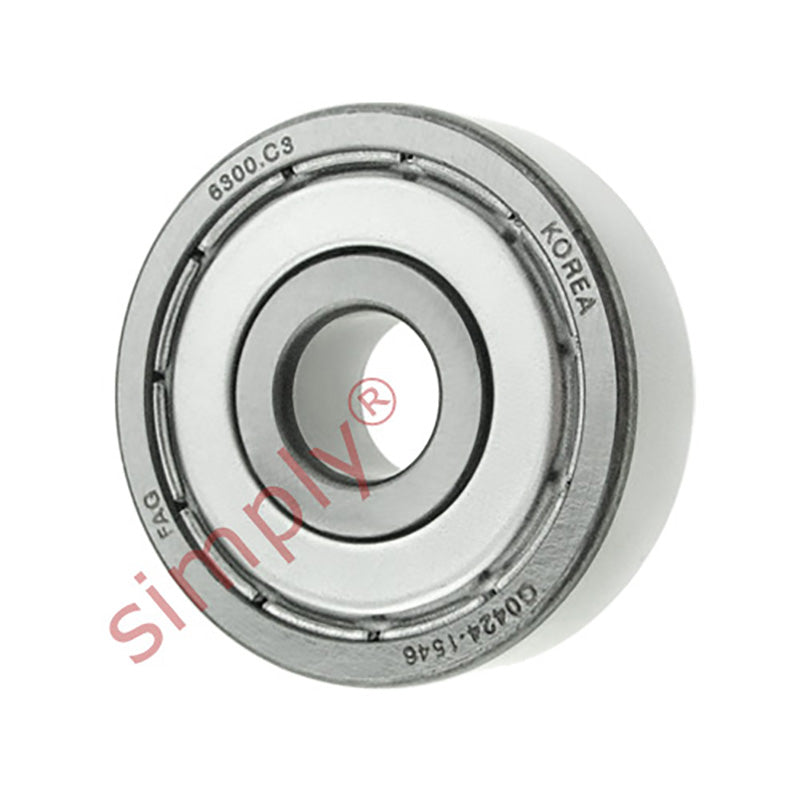

FAG 63002ZC3 Metal Shielded Deep Groove Ball Bearing 10x35x11mm
- Regular price
- $11.54 ex VAT
- Sale price
- $11.54
- Regular price
-
In stock
Quantity Price Breaks
10+
$10.27
19+
$9.69
29+
$9.58
39+
$9.46
49+
$9.35
74+
$9.23
99+
$8.66
199+
$8.54
249+
$8.42
499+
$8.31
999+
$8.08
SKU:
6300-2Z/C3-FAG
FAG 63002ZC3 Metal Shielded Deep Groove Ball Bearing 10x35x11mm
- Regular price
- $11.54 ex VAT
- Sale price
- $11.54
- Regular price
-
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 10mm |
| D | = | 35mm |
| B | = | 11mm |
| Dynamic load C | = | 8.52 kN |
| Static load Co | = | 3.4 kN |
| Fatigue load limit Pu | = | 0.143 kN |
| Reference speed | = | 50000 rpm |
| Limiting speed | = | 26000 rpm |
| Mass | = | 0.053 kg |
| d2 | = | 15.7mm |
| D2 | = | 28.7mm |
| r1r2 min | = | 0.6mm |
| da min | = | 14.2 |
