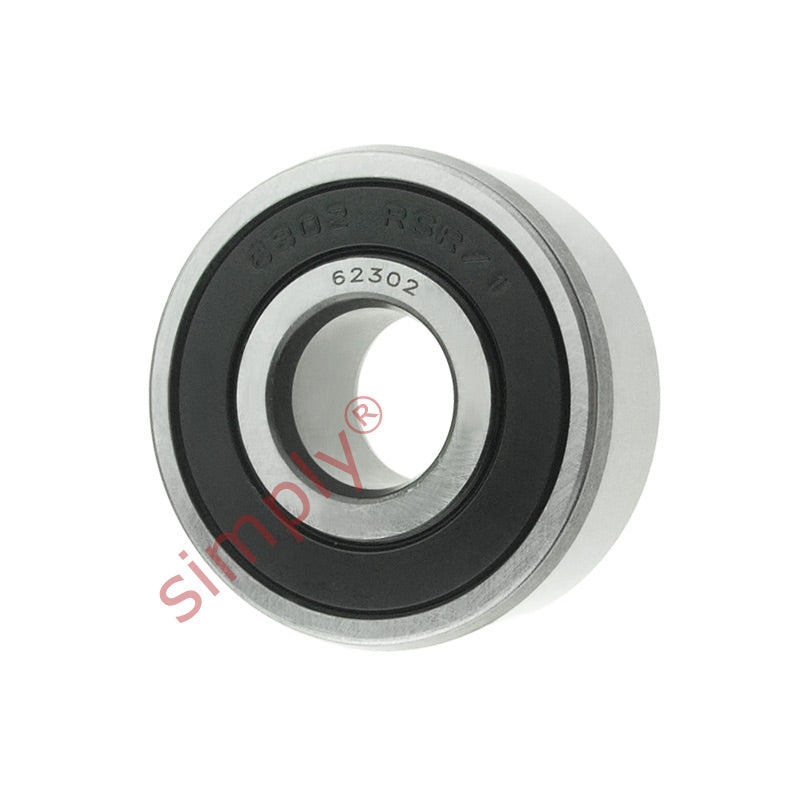

FAG 623022RSR Rubber Sealed Deep Groove Ball Bearing 15x42x17mm
FAG
FAG 623022RSR Rubber Sealed Deep Groove Ball Bearing 15x42x17mm
FAG

SKU: 62302-2RSR-FAG

FAG 623022RSR Rubber Sealed Deep Groove Ball Bearing 15x42x17mm

$30.67 ex VAT
$30.67
ex VAT
Equivalent to: 62302NSE 62302DU 62302RS 62302RSH 62302P 62302RSR 62302LU 623022NSE 62302DDU 623022RS 623022RS1 623022RSH 62302PP 62302LLU
In stock

Quantity Price Breaks

10+ $27.30
19+ $25.76
29+ $25.46
39+ $25.15
49+ $24.84
74+ $24.54
99+ $23.00
199+ $22.70
249+ $22.39
499+ $22.08
999+ $21.47
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 623022RSR Rubber Sealed Deep Groove Ball Bearing 15x42x17mm
FAG
SKU: 62302-2RSR-FAG

FAG 623022RSR Rubber Sealed Deep Groove Ball Bearing 15x42x17mm

$30.67 ex VAT
$30.67
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 15mm
D = 42mm
B = 17mm
Dynamic load C = 11.4 kN
Static load Co = 5.4 kN
Fatigue load limit Pu = 0.228 kN
Reference speed = 38000 rpm
Limiting speed = 12000 rpm
Mass = 0.11 kg
d1 = 23.7mm
D2 = 36.3mm
r1r2 min = 1mm
da min = 20.6
