SKU: 6230/C3-NACHI

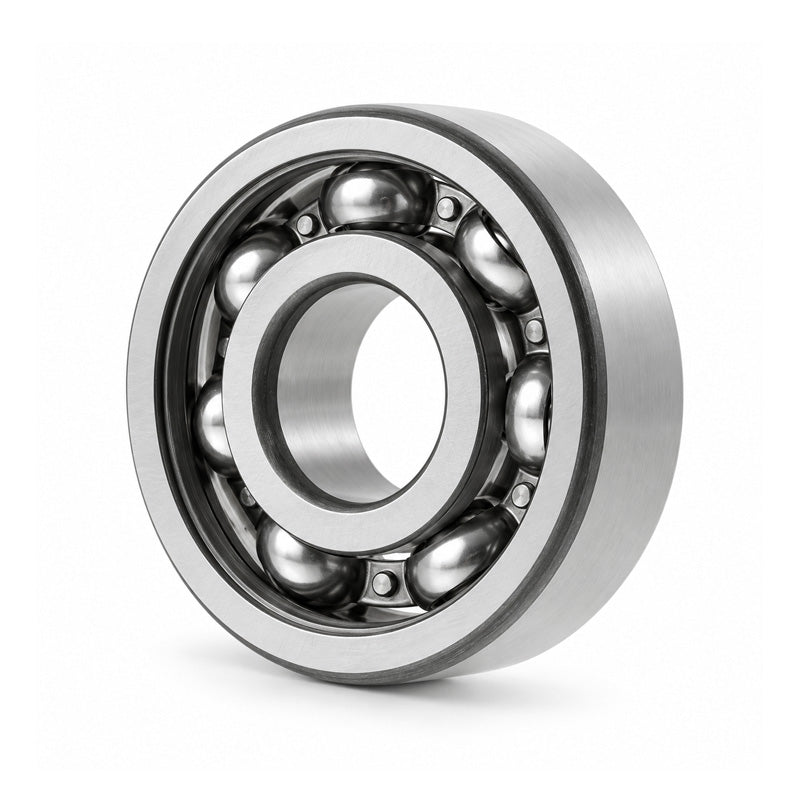

NACHI 6230C3 Open Deep Groove Ball Bearing 150x270x45mm
- Regular price
- $1,128.27 ex VAT
- Sale price
- $1,128.27
- Regular price
-
Not in stock
Quantity Price Breaks
5
$1,004.16
9
$947.75
19
$936.46
29
$925.18
49
$913.90
74
$902.62
99
$846.20
199
$834.92
249
$823.64
499
$812.35
999
$789.79
SKU:
6230/C3-NACHI
NACHI 6230C3 Open Deep Groove Ball Bearing 150x270x45mm
- Regular price
- $1,128.27 ex VAT
- Sale price
- $1,128.27
- Regular price
-
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
Technical
| Inside Diameter d | = | 150mm |
| Outside Diameter D | = | 270mm |
| Width B | = | 45mm |
| Min radius r | = | 3mm |
| Dynamic load | = | 176000 kN |
| Static load | = | 168000 kN |
| Max speed in oil | = | 2700 rpm |
| Max speed in grease | = | 2300 rpm |
| da min | = | 164mm |
| Da max | = | 256mm |
| ra max | = | 2.5mm |
| Weight | = | 9.41 kg |
