SKU: 6213-2NSE/C3-NACHI
NACHI 62132NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 65x120x23mm
- Regular price
- $72.04 ex VAT
- Sale price
- $72.04
- Regular price
-
Not in stock
Quantity Price Breaks
5
$64.12
9
$60.51
19
$59.79
29
$59.07
49
$58.35
74
$57.63
99
$54.03
199
$53.31
249
$52.59
499
$51.87
999
$50.43
SKU:
6213-2NSE/C3-NACHI
NACHI 62132NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 65x120x23mm
- Regular price
- $72.04 ex VAT
- Sale price
- $72.04
- Regular price
-
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |

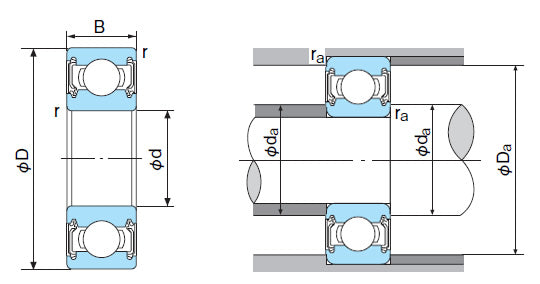

Technical
| Inside Diameter d | = | 65mm |
| Outside Diameter D | = | 120mm |
| Width B | = | 23mm |
| Min radius r | = | 1.5mm |
| Dynamic load | = | 57000 kN |
| Static load | = | 40000 kN |
| Max speed | = | 5500 rpm |
| da min | = | 74mm |
| Da max | = | 111mm |
| ra max | = | 1.5mm |
| Weight | = | 0.99 kg |
