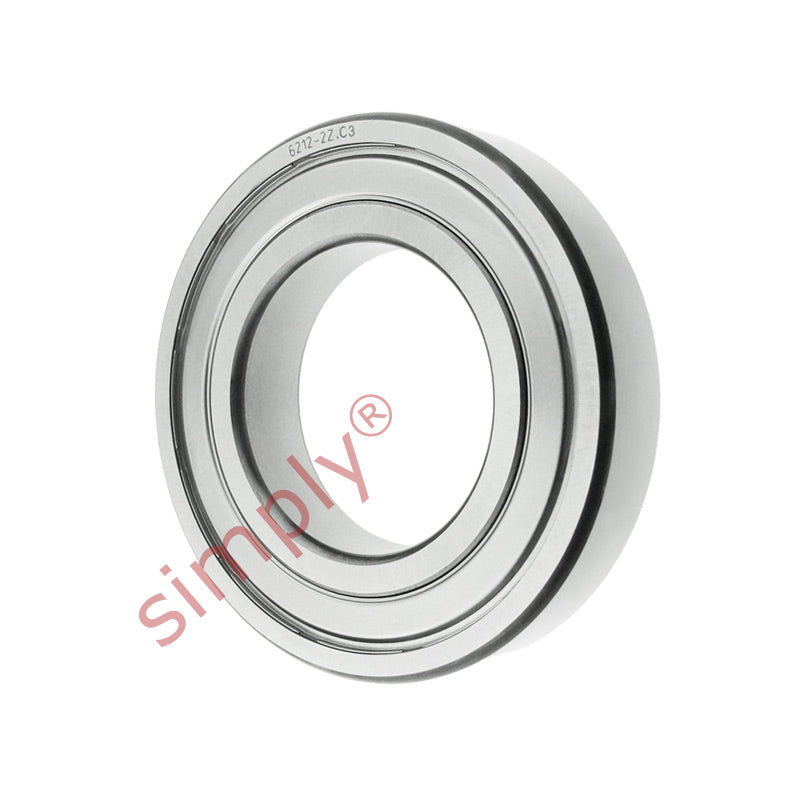

Major Branded 62122ZC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm

SKU: 6212-2Z/C3-MB

Major Branded 62122ZC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm

$66.61 ex VAT
$66.61
ex VAT
Equivalent to: 6212ZZEC3 6212ZZC3 6212.2ZC3 6212KDDC3 6212DDC3 62122ZRC3 6212FFC3
In stock

Quantity Price Breaks

10+ $59.28
19+ $55.95
29+ $55.29
39+ $54.62
49+ $53.95
74+ $53.29
99+ $49.96
199+ $49.29
249+ $48.63
499+ $47.96
999+ $46.63
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 62122ZC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm
SKU: 6212-2Z/C3-MB

Major Branded 62122ZC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm

$66.61 ex VAT
$66.61
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 60mm
D = 110mm
B = 22mm
Dynamic load C = 55.3 kN
Static load Co = 36 kN
Fatigue load limit Pu = 1.53 kN
Reference speed = 13000 rpm
Limiting speed = 6300 rpm
Mass = 0.78 kg
d1 = 75.5mm
D2 = 98mm
r1r2 min = 1.5mm
da min = 69
