SKU: 6209NR-FAG

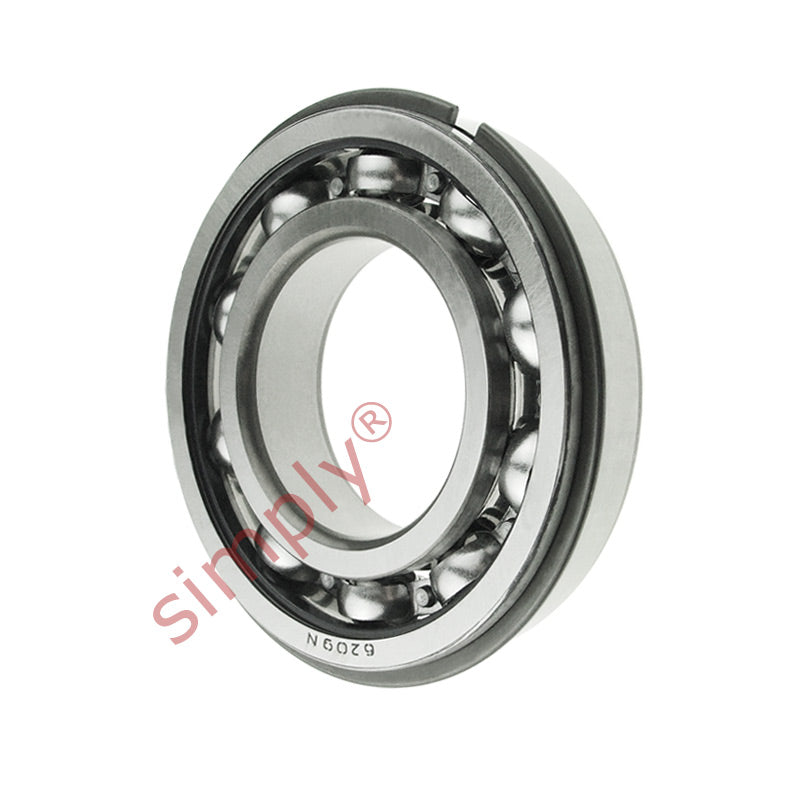

6209NR Deep Groove Ball Bearing with Snap Ring 45x85x19mm
- Regular price
- $77.83 ex VAT
- Sale price
- $77.83
- Regular price
-
In stock
Quantity Price Breaks
10
$69.27
19
$65.38
29
$64.60
39
$63.82
49
$63.04
74
$62.26
99
$58.37
199
$57.59
249
$56.82
499
$56.04
999
$54.48
SKU:
6209NR-FAG
6209NR Deep Groove Ball Bearing with Snap Ring 45x85x19mm
- Regular price
- $77.83 ex VAT
- Sale price
- $77.83
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 45mm |
| D | = | 85mm |
| B | = | 19mm |
| Dyamic load C | = | 35.1 kN |
| Static load Co | = | 21.6 kN |
| Fatigue load limit Pu | = | 0.92 kN |
| Reference speed | = | 17000 rpm |
| Limiting speed | = | 11000 rpm |
| Mass | = | 0.41 kg |
| d1 | = | 57.6mm |
| d2 | = | 72.4mm |
| D2 | = | 75.2mm |
| r1r2 min | = | 1.1mm |
| da min | = | 52 |
