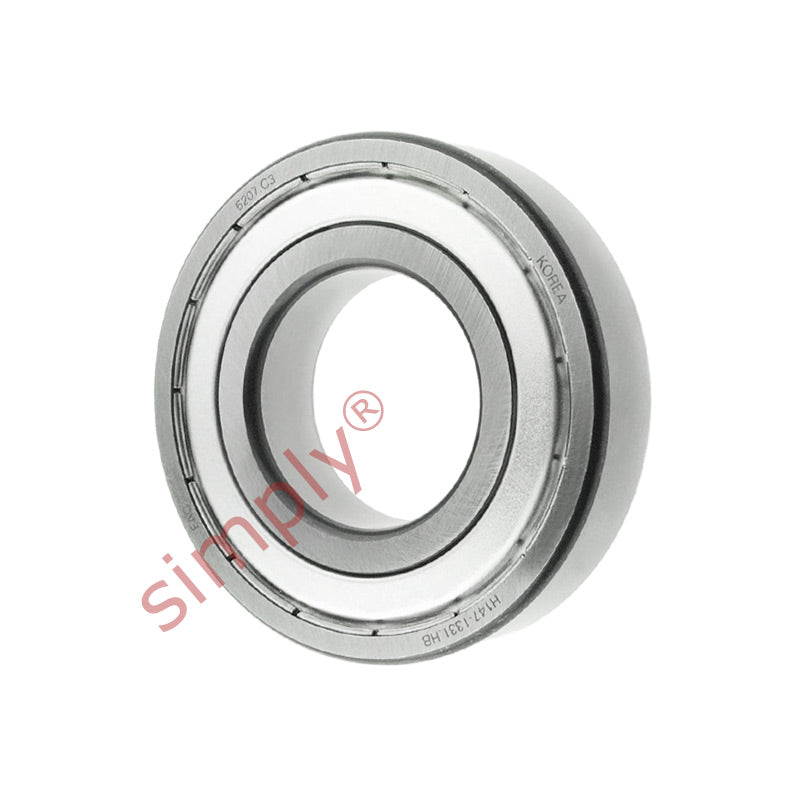

FAG 62072ZC3 Metal Shielded Deep Groove Ball Bearing 35x72x17mm
FAG
FAG 62072ZC3 Metal Shielded Deep Groove Ball Bearing 35x72x17mm
FAG

SKU: 6207-2Z/C3-FAG

FAG 62072ZC3 Metal Shielded Deep Groove Ball Bearing 35x72x17mm

$26.57 ex VAT
$26.57
ex VAT
Equivalent to: 6207ZZEC3 6207ZZC3 6207.2ZC3 6207KDDC3 6207DDC3 62072ZRC3 6207FFC3
In stock

Quantity Price Breaks

10+ $23.65
19+ $22.32
29+ $22.05
39+ $21.79
49+ $21.52
74+ $21.26
99+ $19.93
199+ $19.66
249+ $19.40
499+ $19.13
999+ $18.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62072ZC3 Metal Shielded Deep Groove Ball Bearing 35x72x17mm
FAG
SKU: 6207-2Z/C3-FAG

FAG 62072ZC3 Metal Shielded Deep Groove Ball Bearing 35x72x17mm

$26.57 ex VAT
$26.57
ex VAT

Description

FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 35mm
D = 72mm
B = 17mm
Dynamic load C = 27 kN
Static load Co = 15.3 kN
Fatigue load limit Pu = 0.655 kN
Reference speed = 20000 rpm
Limiting speed = 10000 rpm
Mass = 0.29 kg
d1 = 46.9mm
D2 = 62.7mm
r1r2 min = 1.1mm
da min = 42
