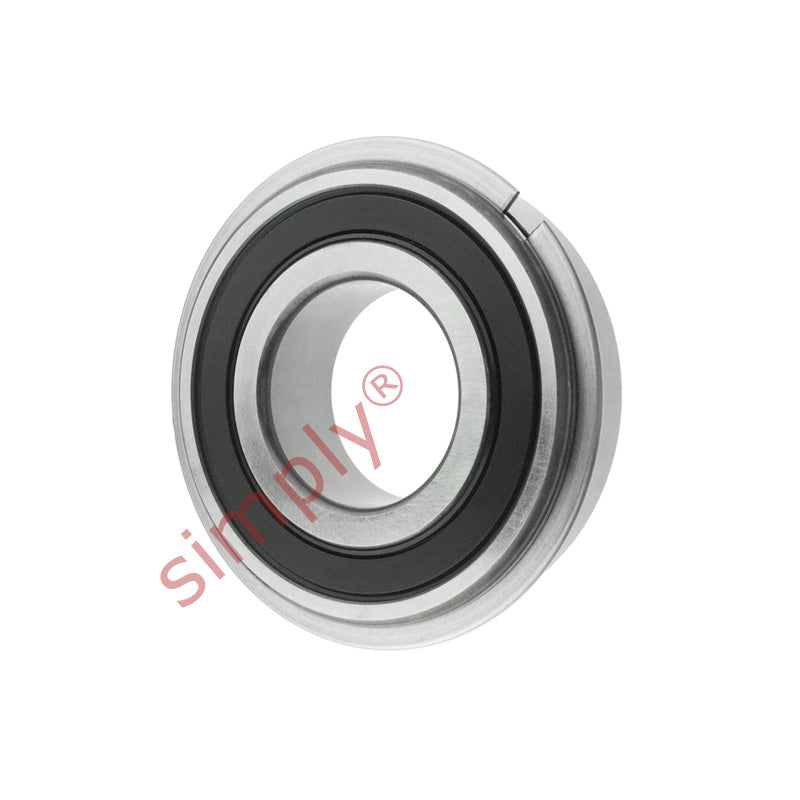

Major Branded 62072RS1NR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 35x72x17mm

SKU: 6207-2RS1NR/C3-MB

Major Branded 62072RS1NR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 35x72x17mm

$93.24 ex VAT
$93.24
ex VAT
In stock

Quantity Price Breaks

10+ $82.98
19+ $78.32
29+ $77.39
39+ $76.46
49+ $75.52
74+ $74.59
99+ $69.93
199+ $69.00
249+ $68.07
499+ $67.13
999+ $65.27
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 62072RS1NR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 35x72x17mm
SKU: 6207-2RS1NR/C3-MB

Major Branded 62072RS1NR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 35x72x17mm

$93.24 ex VAT
$93.24
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life, snap ring location in housings, open and metal shielded options available

Technical

d = 35mm
D = 72mm
B = 17mm
Dynamic load C = 27 kN
Static load Co = 15.3 kN
Fatigue load limit Pu = 0.655 kN
Reference speed = 20000 rpm
Limiting speed = 6300 rpm
Mass = 0.29 kg
d1 = 46.9mm
D2 = 62.7mm
r1r2 min = 1.1mm
da min = 42
